TYD-50H31 ECM Motor
Fan Coil50W | 120–240V | 1050RPM
Single-Shaft | HVAC Fans
HVAC ECM Motors
Internal-rotor ECM motors with external driver solutions for HVAC OEMs. Customizable motor performance, mechanical configurations and control interfaces for different equipment requirements.
Discuss Your Project
Engineered
for HVAC
for HVAC
Higher Efficiency
Motor and control matching for efficient HVAC operation.
Lower Noise
Speed and motor tuning for quiet operation.
Wide Power Range
Motor-specific platforms for HVAC applications.
Flexible Customization
Power, mounting and control options tailored to your needs.
01
Our HVAC ECM Motors
ECM motors for fan, blower and air-moving applications across HVAC equipment.
TYD-85H51 ECM Motor
Air Conditioner85W | 120–240V | 1050RPM
Single-Shaft | Air Handler
TYD-120H51 ECM Motor
Fan and Blower120W | 120–240V | 1050RPM
Single-Shaft | FCU / AHU
TYD-150H51 ECM Motor
Air Purifier150W | 120–240V | 1050RPM
Single-Shaft | Commercial HVAC
TYD-85D32 ECM Motor
Condenser Fan85W | 120–240V | 1050RPM
Double-Shaft | Dual-Wheel Blower
TYD-120D32 ECM Motor
Refrigeration120W | 120–240V | 1050RPM
Double-Shaft | HVAC Applications
TYD-85FCU ECM Motor
Fan Coil85W | 120–240V | 1050RPM
FCU Application | Compact Design
TYD-120FCU ECM Motor
Heat Pump Fan120W | 120–240V | 1050RPM
FCU Application | High Efficiency
02

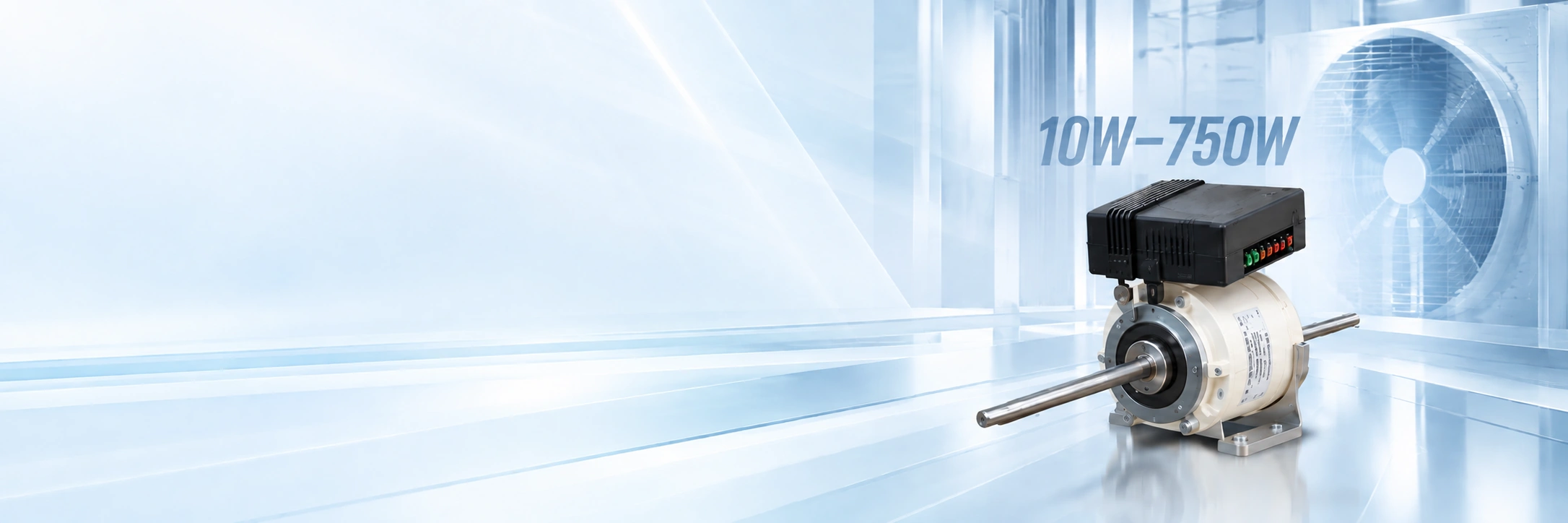

10W–750W (1HP) ECM Motor Range
Complete matched motor + driver capability for a wide range of HVAC applications.
10WCustom design and optimal matching based on your requirements.750W (1HP)
03
ECM Motor Customization
We can customize and match the motor to your application requirements.
Built for U.S. HVAC Replacement
NEMA Frame
In the U.S. HVAC replacement market, NEMA frame size is a key factor for mechanical compatibility. TACICON can develop ECM motor solutions based on common NEMA frame requirements, helping match existing equipment dimensions, mounting, shaft and performance requirements.
Whether replacing a PSC motor or developing an ECM alternative for an existing HVAC platform, we can customize the motor to fit your application.
Explore NEMA 42 & 48 ECM MotorsNEMA Frame Options
For the U.S. Market
We can develop ECM motors in multiple NEMA frame sizes to meet different HVAC equipment designs and installation requirements.
23NEMA
32NEMA
42NEMA
48NEMA
56NEMA
Custom motor dimensions, shaft, mounting and performance can be developed based on your application requirements.
Impeller Matching
We match ECM motors with different impeller types based on your airflow, static pressure and installation requirements.
Engineered
for HVAC
01
Forward-Curved Centrifugal Impeller
Compact centrifugal design for HVAC applications requiring airflow within limited installation space.
Typical Applications
Fan coil units (FCU), compact air handlers, air purifiers, dehumidifiers
02
Backward-Curved Centrifugal Impeller
Designed for efficient airflow performance across a range of operating conditions and static pressure requirements.
Typical Applications
Air handling units (AHU), ERV/HRV systems, filtration equipment, ventilation units
03
Cross-Flow / Tangential Fan
Provides a wide, distributed airflow pattern, making it suitable for slim equipment and elongated air outlets.
Typical Applications
Air conditioner indoor units, air curtains, wall-mounted fan units
04
Axial Fan
Delivers airflow along the motor axis, typically suited to high-airflow applications with relatively low system resistance.
Typical Applications
Condenser units, heat pump outdoor units, ventilation equipment
Need a Complete Blower Assembly?
Tacicon matches ECM motors, impellers, blower housings and external drivers to your airflow, static pressure and installation requirements.
Discuss Your Blower RequirementsECM Motor
Impeller
Blower Housing
Complete Blower Assembly04
Why an External Driver?
Separating the motor and driver gives HVAC OEMs greater flexibility in system design, thermal management, maintenance and motor selection.
More Flexibility
for HVAC Innovation
Faster Customization
Adapt driver hardware, firmware and control interfaces without necessarily redesigning the motor.
Fewer Motor Variants
Support different HVAC control requirements with a common motor platform and matched driver options.
Easier Service & Replacement
Separate motor and driver components allow more flexible maintenance and replacement strategies.
Better Thermal Separation
Position the driver away from motor heat and vibration for improved thermal management and system integration.
TECHNOLOGY SPOTLIGHT
Sensorless Control. External Driver Flexibility.
Our sensorless motor driver solutions support Hall-sensor-free BLDC motor operation, with motor-specific tuning and configurable control options.
No Hall Sensors Required
Sensorless commutation eliminates the need for Hall sensor feedback from the motor.
Motor-Specific Tuning
Driver parameters and firmware can be optimized for motor characteristics and application requirements.
Control Interface Options
Depending on the driver model, available interfaces include 3-speed, 0–10V and RS485 control.
One Motor Platform.
More Possibilities.
TACICON brings together ECM motors, impellers, blower assemblies, external drivers and HVAC controls to support OEM system integration.
Explore Motor & Driver SolutionsMotor & Air System
Drive & Control
ECM Motor
10–750W (1 HP)Custom Motor Configurations
Impeller / Blower
Centrifugal · Axial · Cross-FlowAirflow & Static Pressure Matching
External Motor Driver
3 Speed · 0–10V · Modbus · PWMCustom Hardware & Firmware
Thermostat / Control
Temperature · Fan · ValveCompressor Control
A Matched HVAC Motor & Control Solution
Engineered to Match Your Application
05
HVAC SOLUTIONS
Built for HVAC Applications
Matched ECM motor, blower, external driver and control solutions engineered around your HVAC equipment requirements.
01
Fan Coil Units
Blower Motor · Variable Airflow
02Compact Air Handlers
Blower Motor · Airflow Control
03ERV / HRV
Air Distribution · Supply & Exhaust
04PTAC / VTAC
Indoor Blower · Ventilation Fan
05Heat Pumps & Furnaces
Indoor Blower · Variable Airflow
06Dehumidifiers / Humidifiers
Process Air · Blower Motor
07Air Distribution & Ventilation
Air Distribution · Supply & Exhaust
08Wine Cellar Cooling
Evaporator Fan · Condenser Fan
06
Engineering Process
From Application Requirements
to Engineering Solutions
We work with HVAC OEMs to match ECM motors, impellers, blowers, driver boards and controls to your specific application requirements.
Custom Engineering Process- Airflow Requirements
- Motor Selection
- Impeller / Blower Matching
- Driver & Control Matching
- Mechanical Integration & Validation
- Mass Production
07
Technical FAQ
What information do you need to select the right ECM motor?
Please provide your application, voltage, power, RPM, torque or target airflow/static pressure, shaft dimensions, mounting method, rotation direction and control requirements.
If you are replacing an existing motor, you can simply send us the motor model, drawing, datasheet or nameplate photo for evaluation.
Can you match or replace my existing HVAC motor?
Yes. We can evaluate your existing motor specifications, drawing, datasheet or nameplate and develop a matched ECM motor solution based on the electrical, mechanical and application requirements.
For PSC-to-ECM conversion projects, we can also evaluate the required power, RPM, torque, airflow, mounting and control method before recommending the ECM configuration.
What ECM motor parameters can be customized?
We can customize power, voltage, RPM, torque, motor frame, shaft diameter and length, mounting, rotation direction and control configuration according to your HVAC application.
Mechanical dimensions and motor performance can also be developed around your existing equipment or blower design.
What power range do your ECM motors cover?
Our ECM motors cover approximately 10–750W (0.01–1.0 HP), supporting a wide range of HVAC fan and blower applications, from compact terminal units to larger air-moving equipment.
Can you match the ECM motor with an impeller or blower?
Yes. We can match the ECM motor with forward-curved, backward-curved, cross-flow/tangential and axial impellers according to the required airflow, static pressure and installation conditions.
Motor power, RPM and torque can then be matched to the actual fan load, while the driver and firmware can be tuned for the required operating range.
What control options are available for your ECM motors?
With our external driver boards, we can support control options such as multi-speed, 0–10V, PWM, RS485/Modbus and customized control interfaces, depending on the application.
Driver hardware and firmware can also be customized to match specific motor and HVAC system requirements.
Can your ECM motor work with a thermostat or HVAC controller?
Yes. Our external driver architecture provides a flexible interface between the ECM motor and a thermostat, HVAC controller or building control system.
Control signals, speed commands and communication interfaces can be configured according to the HVAC system requirements.
Can I request samples for testing before mass production?
Yes. Prototype samples can be provided for motor performance, airflow and system integration testing before mass production.
For customized projects, we will first review your application requirements and confirm the motor, driver and control configuration before sample development.
08
Find the Right Path for Your Project
Whether you're developing new HVAC equipment, replacing an existing motor or blower, or upgrading a PSC platform, TACICON can help you find a matched solution.
Custom Engineering
For new HVAC equipment requiring customized ECM motors, blowers and control solutions.
Start a New ProjectOEM Replacement
Match existing ECM motors, blowers and external drivers for OEM replacement applications.
Send Your Motor DetailsPSC-to-ECM Conversion
Upgrade existing PSC motor applications with matched ECM motors and external driver solutions.
Evaluate Your PSC PlatformNEMA 42 & 48 Frame Solutions
ECM motor solutions for NEMA 42 and 48 frame applications in the U.S. HVAC replacement market.
Explore NEMA 42 & 48
LET’S BUILD A SMARTER HVAC SOLUTION TOGETHER
Have an HVAC Motor or Control Project?
Send us your application requirements, motor specifications, drawings or control requirements.
