HVAC APPLICATIONS

PTAC / VTAC ECM Motor, Blower & Control Solutions

ECM Motor, Blower & Control Solutions

Engineered for Packaged Terminal Air Conditioners (PTAC), Packaged Terminal Heat Pumps (PTHP), Vertical Terminal Air Conditioners (VTAC), and Vertical Terminal Heat Pumps (VTHP) — from motor replacement and PSC-to-ECM upgrades to matched motor, blower and control solutions.

PSC → ECM ReadyFor Upgrade & Replacement

NEMA 42 / 48For North American Applications

Custom Motor MatchingShaft · Mounting · RPM · Torque

Flexible Control3-Speed · 0–10V · PWM · Modbus

Why ECM Motors for PTAC / VTAC

Packaged Terminal Air Conditioners (PTAC), Packaged Terminal Heat Pumps (PTHP), Vertical Terminal Air Conditioners (VTAC), and Vertical Terminal Heat Pumps (VTHP) require reliable blower operation across different airflow and operating modes.

TACICON ECM solutions can be developed around existing equipment requirements, combining PSC-to-ECM upgrades, NEMA frame compatibility, blower matching and flexible speed control for both new OEM designs and replacement applications.

PSC → ECM Upgrade

For Existing PTAC / VTAC Platforms

ECM solutions developed around existing PSC motor and equipment requirements.

NEMA 42 / 48 Frame

Built for U.S. HVAC Replacement

Frame options for common North American HVAC motor applications.

Blower Matching

Matched to Airflow & ESP Requirements

Motor and blower matched around the required airflow, ESP, RPM and torque.

Flexible Speed Control

Multiple Control Options

3-Speed · 0–10V · PWM · Modbus*

ECM VS PSC IN PTAC / VTAC APPLICATIONS

ECM vs PSC for PTAC / VTAC Systems

ECM motors provide higher motor efficiency, flexible speed control and greater configuration flexibility for modern PTAC and VTAC systems, while also supporting PSC-to-ECM upgrade and replacement applications.

FeaturePSC MotorECM Motor
Motor EfficiencyLowerHigher
Speed ControlFixed speed tapsMulti-speed / variable speed
Operating ModesLimited speed flexibilityConfigurable for different operating modes
Control IntegrationBasic speed control3-Speed / 0–10V / PWM / Modbus*
OEM ConfigurationLimitedMotor + external driver + firmware
Replacement & UpgradeConventional PSC designSupports PSC → ECM upgrade projects

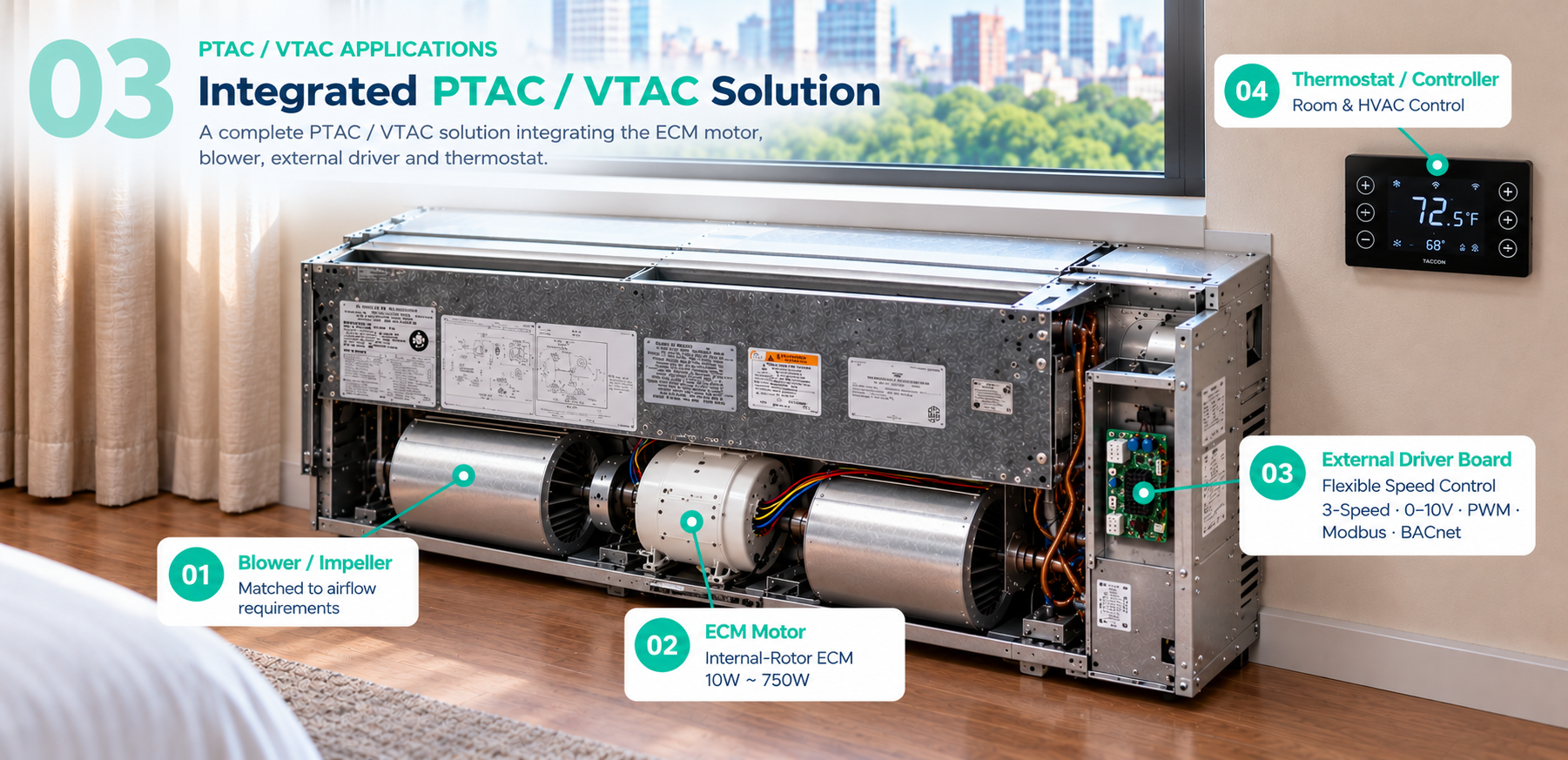

Integrated PTAC and VTAC solution showing the blower, internal-rotor ECM motor, external driver board and thermostat controller
04

Why an External Driver?

Separating the motor and driver gives HVAC OEMs greater flexibility in system design, thermal management, maintenance and motor selection.

More Flexibility
for HVAC Innovation

Faster Customization

Adapt driver hardware, firmware and control interfaces without necessarily redesigning the motor.

Fewer Motor Variants

Support different HVAC control requirements with a common motor platform and matched driver options.

Easier Service & Replacement

Separate motor and driver components allow more flexible maintenance and replacement strategies.

Better Thermal Separation

Position the driver away from motor heat and vibration for improved thermal management and system integration.

TECHNOLOGY SPOTLIGHT

Sensorless Control. External Driver Flexibility.

Our sensorless motor driver solutions support Hall-sensor-free BLDC motor operation, with motor-specific tuning and configurable control options.

No Hall Sensors Required

Sensorless commutation eliminates the need for Hall sensor feedback from the motor.

Motor-Specific Tuning

Driver parameters and firmware can be optimized for motor characteristics and application requirements.

Control Interface Options

Depending on the driver model, available interfaces include 3-speed, 0–10V and RS485 control.

TACICON sensorless external motor driver board

One Motor Platform.
More Possibilities.

TACICON brings together ECM motors, impellers, blower assemblies, external drivers and HVAC controls to support OEM system integration.

Explore Motor & Driver Solutions
Motor & Air System
Drive & Control
TACICON ECM motor

ECM Motor

10–750W (1 HP)Custom Motor Configurations

Centrifugal blower impeller

Impeller / Blower

Centrifugal · Axial · Cross-FlowAirflow & Static Pressure Matching

M5 ECM motor driver board, front view with a large capacitor and green screw terminals

External Motor Driver

3 Speed · 0–10V · Modbus · PWMCustom Hardware & Firmware

HVAC touchscreen thermostat

Thermostat / Control

Temperature · Fan · ValveCompressor Control

A Matched HVAC Motor & Control Solution

Engineered to Match Your Application

HVAC APPLICATIONS

Built for PTAC / VTAC Motor Replacement

42 / 48 Frame ECM Motor Solutions for North American PTAC / VTAC Equipment

Replacing a PTAC or VTAC motor requires more than matching horsepower, voltage or frame size. The replacement motor must fit the existing blower and equipment structure while matching the original shaft, mounting, rotation, RPM, torque and electrical requirements.

TACICON develops 42 and 48 Frame ECM motor replacement solutions around existing PTAC and VTAC platforms. Send us your original motor, nameplate, drawing or specifications, and our engineering team can evaluate the mechanical and performance requirements and develop a matched ECM motor + external driver solution for your equipment.

TACICON NEMA 42 & 48 Frame ECM Replacements
06

Engineering Process

From PTAC / VTAC Requirements
to a Matched Motor Solution

We work with PTAC and VTAC OEMs to match the ECM motor, external driver and control configuration around the equipment’s airflow, blower, mechanical and electrical requirements.

Custom Engineering Process
  1. PTAC / VTAC Requirements

    Airflow · Blower · Voltage · Control

  2. Motor Selection & Matching

    RPM · Torque · Power · Frame

  3. Mechanical Integration

    Shaft · Mounting · Rotation · Dimensions

  4. Driver & Control Matching

    Speed Control · Interface · Configuration

  5. Prototype & Validation

    Airflow · Performance · Installation Fit

  6. Production

    Approved Motor + Driver Configuration

Technical FAQ

Can your ECM motor replace an existing PSC motor in a PTAC or VTAC unit?

Yes. We can develop an ECM replacement solution around the existing motor’s mechanical and electrical requirements. Motor frame, shaft, mounting, rotation, RPM, torque, power and control requirements should be evaluated before replacement.

What information do you need to develop a PTAC / VTAC replacement motor?

Send us the existing motor model, nameplate, drawing or datasheet. If available, also provide the blower specifications, required RPM, airflow / ESP requirements, mounting dimensions and control method. We use this information to determine the appropriate motor, blower and driver configuration.

Do you support NEMA 42 and NEMA 48 frame motors?

Yes. NEMA 42 and NEMA 48 frame configurations can be developed for U.S. HVAC applications. Shaft, mounting, motor length and performance can be matched around the existing PTAC / VTAC design.

Can you match the ECM motor to our existing blower?

Yes. If you already have a blower, we can match the ECM motor around its required RPM, torque, power and mechanical interface. If a new blower is required, TACICON can also provide motor + blower matching as part of the solution.

What speed control options are available?

Depending on the external driver configuration, we can support 3-Speed, 0–10V, PWM and Modbus control. The driver and firmware can be configured around the PTAC / VTAC equipment control strategy.

Can the shaft and mounting dimensions be customized?

Yes. Shaft dimensions, mounting structure and other mechanical interfaces can be developed around the equipment installation requirements, subject to engineering evaluation.

Can you replace an existing ECM motor, not just a PSC motor?

Yes. Existing ECM applications can also be evaluated for replacement. Because ECM motor designs and control interfaces vary between manufacturers, we first review the original motor specifications, mechanical interface and control requirements rather than assuming a direct one-to-one replacement.

Can you provide a complete PTAC / VTAC motor and control solution?

Yes. TACICON can provide a matched solution combining the blower / impeller, internal-rotor ECM motor, external driver and thermostat, depending on the project requirements. This allows the motor, airflow components and control configuration to be developed together for the PTAC, PTHP, VTAC or VTHP platform.

TACICON ECM motor and green driver boards in front of rooftop HVAC equipment

LET’S BUILD A SMARTER HVAC SOLUTION TOGETHER

Have an HVAC Motor or Control Project?

Send us your application requirements, motor specifications, drawings or control requirements.
