HP1000
Smart HVAC Thermostat
- 24VAC, Touch screen
- Wi-Fi / Zigbee / RF optional
- Temperature & fan control
- Custom UI and communication options
- For heat pump/ air handler

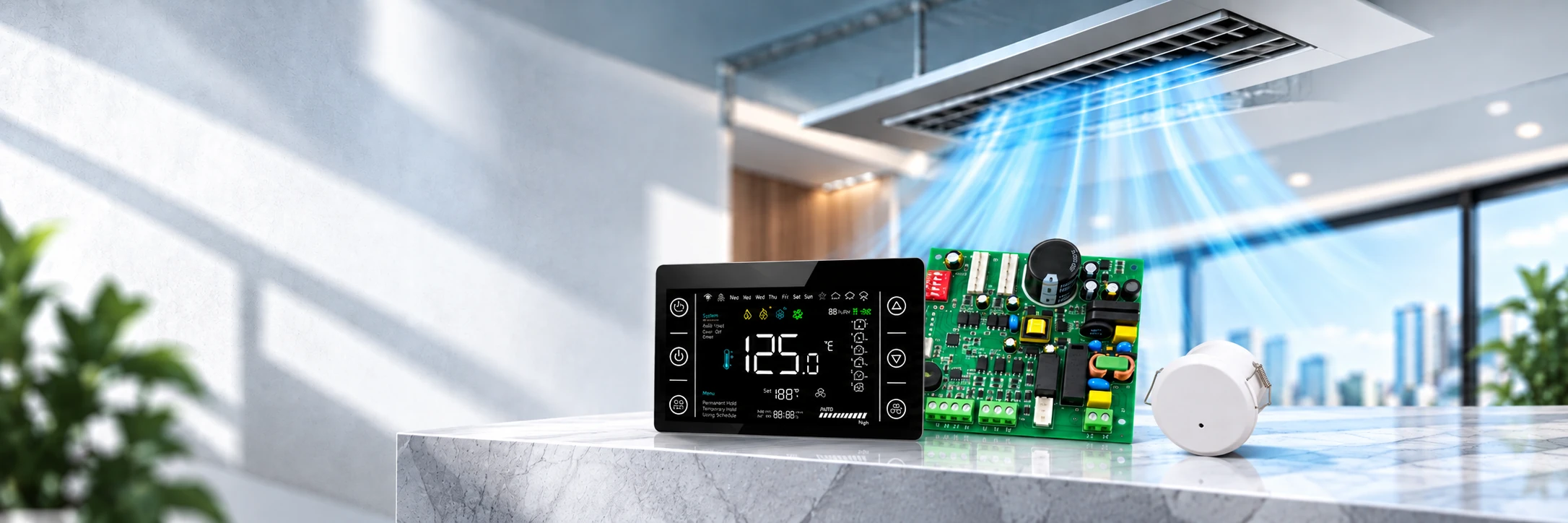

Smart HVAC Controls
ECM Motor + Driver + Thermostat + Sensor
TACICON develops HVAC thermostats, motor control solutions and 24GHz human presence sensors for BMS building automation system and smart home. We support temperature regulation, fan speed control, occupancy-based operation and customized control integration for OEM applications.
Discuss Your HVAC Control ProjectReliable HVAC Control
Stable and accurate control for HVAC equipment in demanding environments.
Multiple Protocol Options
0–10V, Modbus, BACnet, KNX and more.
Flexible Customization
Hardware, firmware, UI and control logic tailored to your needs.
OEM/ODM Development
From concept and prototyping to mass production.
01
Smart HVAC Controls
HVAC control products for fan, temperature, occupancy and equipment control in OEM applications.
FT90
Fan Coil Thermostat
- 2-pipe / 4-pipe systems
- 0–10V fan and valve control
- Modbus / BACnet / KNX (optional)
- Flexible configuration
- Designed for FCU, hotel & commercial HVAC applications
24GHz Human Presence Sensor
HVAC Occupancy Sensor
- 24GHz mmWave sensing
- Detects human presence and micro-movements
- Wireless RF or wired communication
- Enables demand-based fan and temperature control
- Sensor technology by LITWHEAT

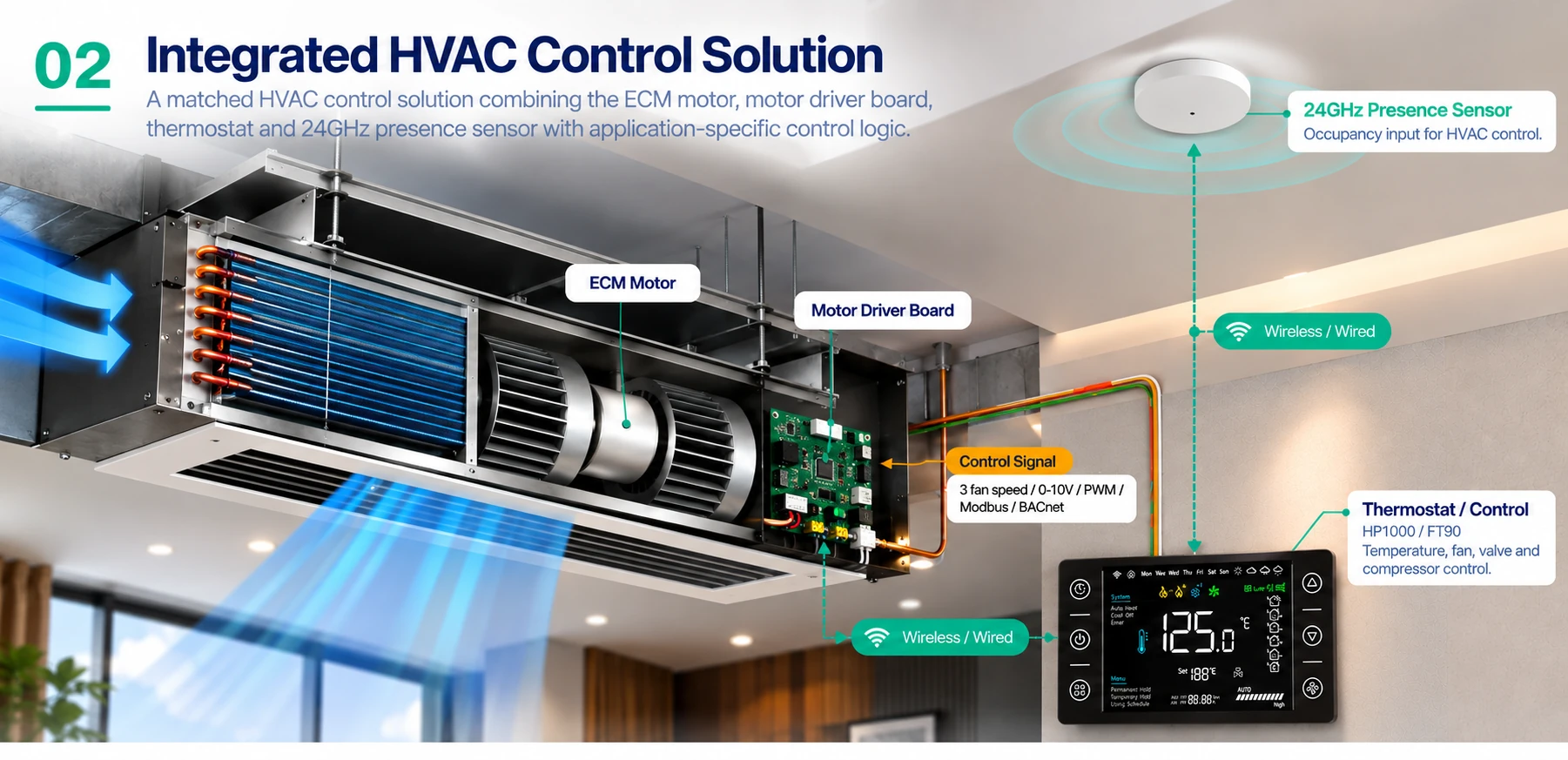

02 Integrated HVAC Control Solution
A matched HVAC control solution combining an ECM motor, motor driver board, thermostat and 24GHz presence sensor with application-specific control logic.
Temperature & Fan Control
Thermostats manage temperature settings and provide fan speed or equipment control signals according to the HVAC system configuration.
Occupancy-Based Operation
24GHz human presence sensing can support demand-based HVAC operation, helping reduce unnecessary equipment runtime when spaces are unoccupied.
Motor Driver Integration
External ECM motor drivers translate compatible control signals into motor operation, supporting application-specific speed-control requirements.
03
HVAC Control Capabilities
Configurable control functions for different HVAC equipment and OEM requirements. Functions and communication options depend on the selected thermostat, driver and system configuration.
Temperature Control
Heating / Cooling / Setpoints
Fan Speed Control
3-Speed / Variable Speed
Valve Control
2-Pipe / 4-Pipe FCU
Equipment Control
Compressor / Heat Pump
Occupancy Control
Presence-Based Operation
Communication
Modbus / BACnet / KNX Options
04
Engineering Process
Custom HVAC Control Development
TACICON supports OEM/ODM development of HVAC thermostats, motor control interfaces and application-specific control solutions. From hardware design and firmware development to communication integration and control logic customization, we help HVAC manufacturers develop controls tailored to their equipment.
Discuss Your Control Requirements- Hardware Customization
PCB Design / Display / I/O Configuration
- Firmware & Control Logic
Operating Modes / Fan Control / Custom Functions
- Communication Integration
Modbus / BACnet / KNX / Wireless Options
- OEM Product Development
Branding / UI Design / Prototype Validation
05
Technical FAQ
What is TACICON Smart HVAC Control?
TACICON Smart HVAC Control is a customizable HVAC control solution integrating an ECM motor, motor driver board, thermostat and optional 24GHz human presence sensing.
The system connects motor control, temperature control and occupancy sensing to provide a more integrated solution for building automation and smart HVAC applications.
What is the complete HVAC control system used for?
The complete system is mainly designed for building automation and smart HVAC applications, especially for hotels, offices, apartments and commercial buildings.
By integrating the ECM motor, motor driver board, thermostat and 24GHz human presence sensor, the system enables coordinated fan speed, temperature, valve and occupancy-based control, helping improve energy efficiency, comfort and HVAC automation.
How does the thermostat communicate with the motor driver board?
Depending on the project, the motor driver board can support different control and communication methods, including 3-speed control, 0–10V, PWM, Modbus and BACnet.
Wireless RF or wired communication can also be developed according to the HVAC system architecture and installation requirements.
What does the 24GHz human presence sensor do?
The sensor uses 24GHz mmWave sensing to detect human presence and micro-movements.
Presence information can be transmitted through wireless RF or wired communication, enabling demand-based fan and temperature control for building automation applications.
Sensor technology by LITWHEAT.
Can the HVAC system automatically respond to room occupancy?
Yes. Presence information can be integrated into the HVAC control logic so the system can automatically adjust fan operation, temperature settings or operating modes according to room occupancy.
The specific occupancy-based control sequence can be customized for different building automation projects.
Do I need to use the complete TACICON system?
No. The system has a modular architecture, so OEM customers can select the components required for their project.
For example, the solution can be configured as ECM motor + driver board, driver board + thermostat, or a more integrated ECM motor + driver board + thermostat + 24GHz human presence sensor system.
Can you customize the control logic for our HVAC system?
Yes. TACICON can customize motor parameters, fan-speed control, thermostat functions, communication interfaces and application-specific control logic according to your HVAC equipment and building automation requirements.
This allows the control system to be developed around the actual HVAC application rather than using a fixed standard configuration.
Which thermostat should I choose for my HVAC system?
TACICON offers different thermostat solutions for different HVAC systems and markets.
HP1000 — North American Market
Designed for 24VAC HVAC systems, including heat pumps and air handlers.
HP90 — European Market
Designed for 230VAC HVAC systems, primarily for fan coil units (FCUs).
Both thermostats can be integrated into the TACICON Smart HVAC Control solution based on the specific HVAC application and control requirements.
LET’S BUILD A SMARTER HVAC SOLUTION TOGETHER
Have an HVAC Motor or Control Project?
Send us your application requirements, motor specifications, drawings or control requirements.
