Frame & Performance Matching
Match frame requirements, shaft configurations and operating performance.

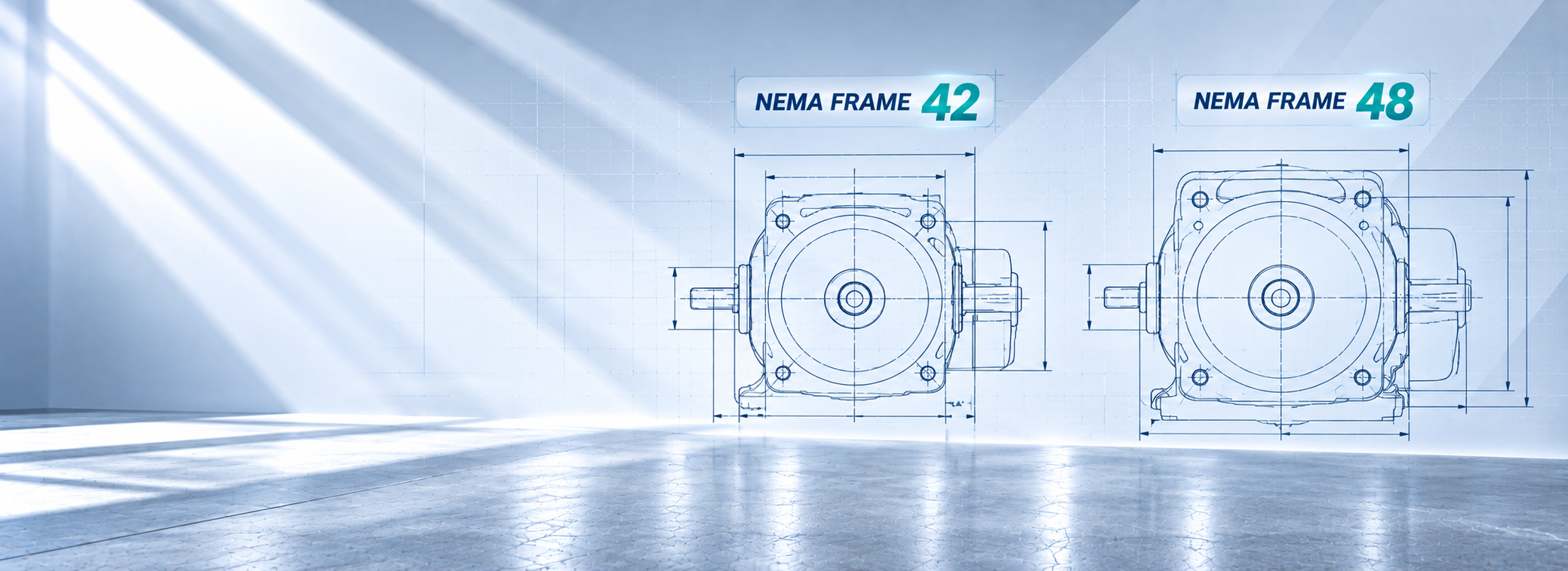

NEMA 42 & 48 FRAME ECM MOTORS
NEMA 42 & 48 Frame
ECM Motor Solutions
Built for U.S. HVAC Replacement
ECM motor + external driver solutions engineered around NEMA frame, shaft, mounting, performance and control requirements for U.S. HVAC applications.
MECHANICAL COMPATIBILITY
Mechanical Matching Beyond the Frame Size
NEMA 42 and 48 frame sizes provide the starting point for replacement. A successful motor match also depends on shaft dimensions, mounting configuration, available space and mechanical interface with the existing HVAC equipment.
TACICON evaluates these requirements together to develop a motor configuration that fits the application.
APPLICATION MATCHING
Match the Frame. Then Match the Application.
Frame compatibility is only the starting point. Motor performance, blower requirements and control interface must also be matched to the HVAC equipment.
- 01
Mechanical
Frame · Shaft · Mounting
- 02
Performance
Power · RPM · Torque · Rotation
- 03

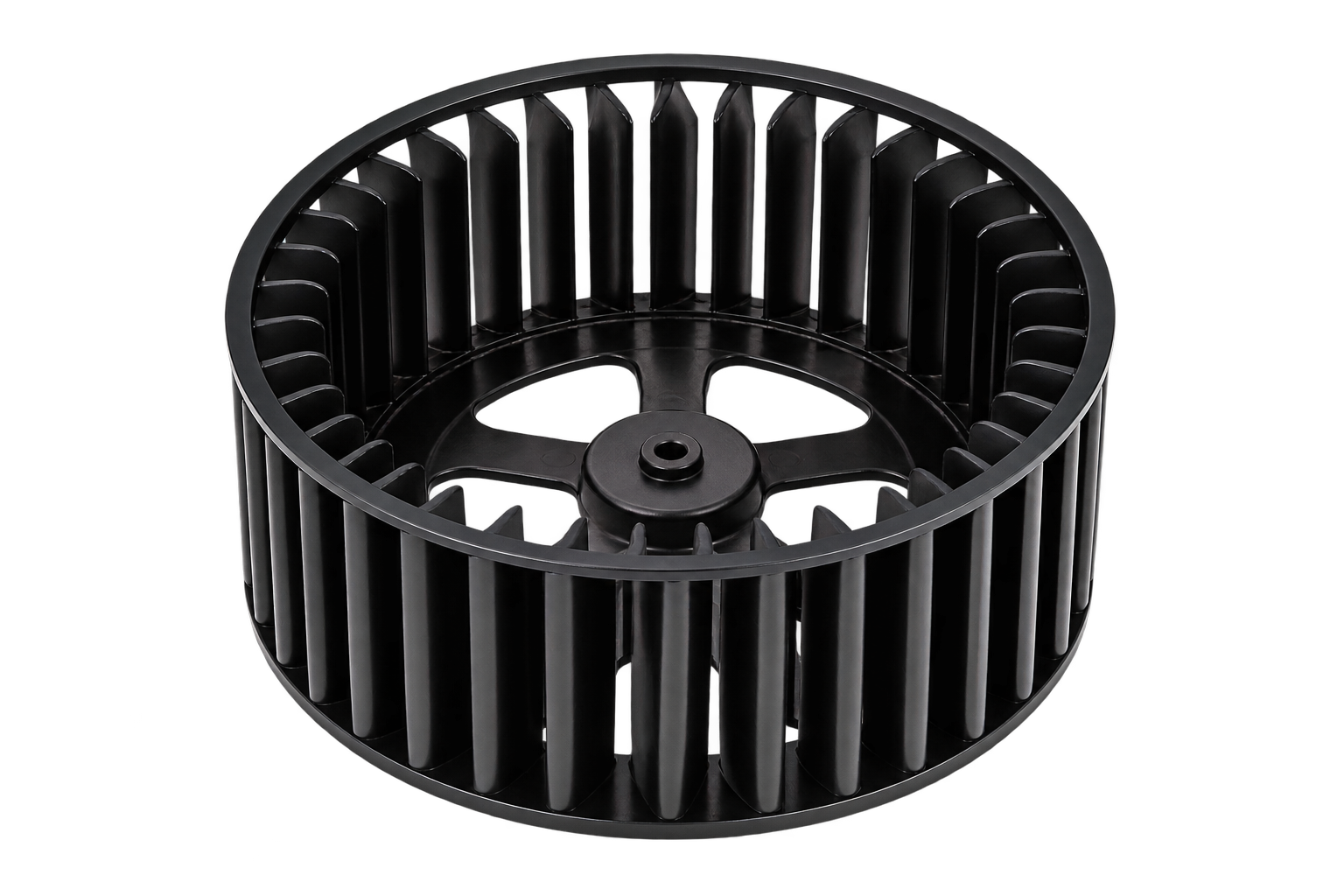

Blower
Airflow · ESP · Operating Point
- 04
Control
0–10V · PWM · Multi-Speed · RS485
Why an External Driver?
TACICON combines NEMA frame motor matching with configurable external driver solutions. By evaluating motor performance, mechanical integration and existing HVAC control requirements separately, we support application-specific ECM motor replacement and OEM development projects.
More Flexibility
for HVAC Innovation
Control Compatibility
Evaluate existing HVAC control signals, wiring and electrical interfaces.
Sensorless Driver Options
Support Hall-sensor-free motor control on compatible motor and driver configurations.
Service Flexibility
Separate motor and driver components for more flexible integration and servicing.
HVAC APPLICATIONS
Built for North American HVAC Equipment
NEMA-frame ECM solutions can be evaluated for a range of residential and light-commercial HVAC fan and blower applications.
01
Fan Coil Units
Fan & blower motor matching
02Air Handlers
Indoor blower motor matching
03Furnaces
Blower motor & control matching
04PTAC / VTAC
Indoor blower & ventilation motor matching
05Air Distribution & Ventilation
Supply & exhaust fan motor matching
06Heat Pumps & Package Units
HVAC fan & blower motor matching
Technical FAQ
What are NEMA 42 and NEMA 48 frame motors?
NEMA 42 and NEMA 48 are motor frame size designations used in North American applications. Applicable NEMA frame specifications establish dimensional and mounting requirements for motor interchangeability. However, the same frame designation does not guarantee a direct replacement. Shaft dimensions, mounting configuration, motor performance, voltage and control compatibility must also be evaluated.
Where are NEMA 42 and NEMA 48 motors commonly used in HVAC systems?
These frame sizes may be found in selected residential and light-commercial HVAC equipment, including fan coil units, air handlers, furnaces and ventilation systems. Actual applications depend on motor design, power rating, mounting configuration and equipment requirements.
Can the shaft, mounting and mechanical interface be customized?
Yes. TACICON supports shaft and mounting customization based on existing motor dimensions and HVAC equipment requirements. Options may include shaft diameter, shaft length, mounting brackets, installation orientation and connector configurations.
Can you match the ECM motor to my existing blower or fan?
Yes. TACICON evaluates existing blower or fan specifications, including airflow, external static pressure (ESP), operating speed, torque and mechanical fit. We can recommend a matched ECM motor and external driver configuration based on the application requirements.
What control options are available with your external ECM motor driver?
Depending on the selected driver model, control options may include 0–10V, PWM, multi-speed inputs and RS485 communication. TACICON evaluates existing HVAC control signals and electrical requirements to determine a suitable driver configuration.
Can you support frame sizes other than NEMA 42 and NEMA 48?
TACICON can evaluate other motor frame and mounting requirements for OEM customization projects. Available configurations depend on motor dimensions, performance specifications and project feasibility.
What information should I provide for motor matching?
Please share your existing motor model, nameplate, frame dimensions, shaft and mounting details, voltage, power rating and operating speed. Blower specifications, drawings, wiring diagrams and control requirements are also helpful for evaluating compatibility.
Do you support prototype evaluation before production?
Yes. TACICON supports prototype samples and engineering evaluation before mass production. Depending on the project, validation may include mechanical fit, motor performance, driver compatibility and application testing.
NEMA FRAME MOTOR MATCHING
Need a NEMA 42 or 48 ECM Motor Replacement?
Share your existing motor model, nameplate, frame dimensions, shaft and mounting details. TACICON can evaluate mechanical, performance and control compatibility for a potential replacement solution.
