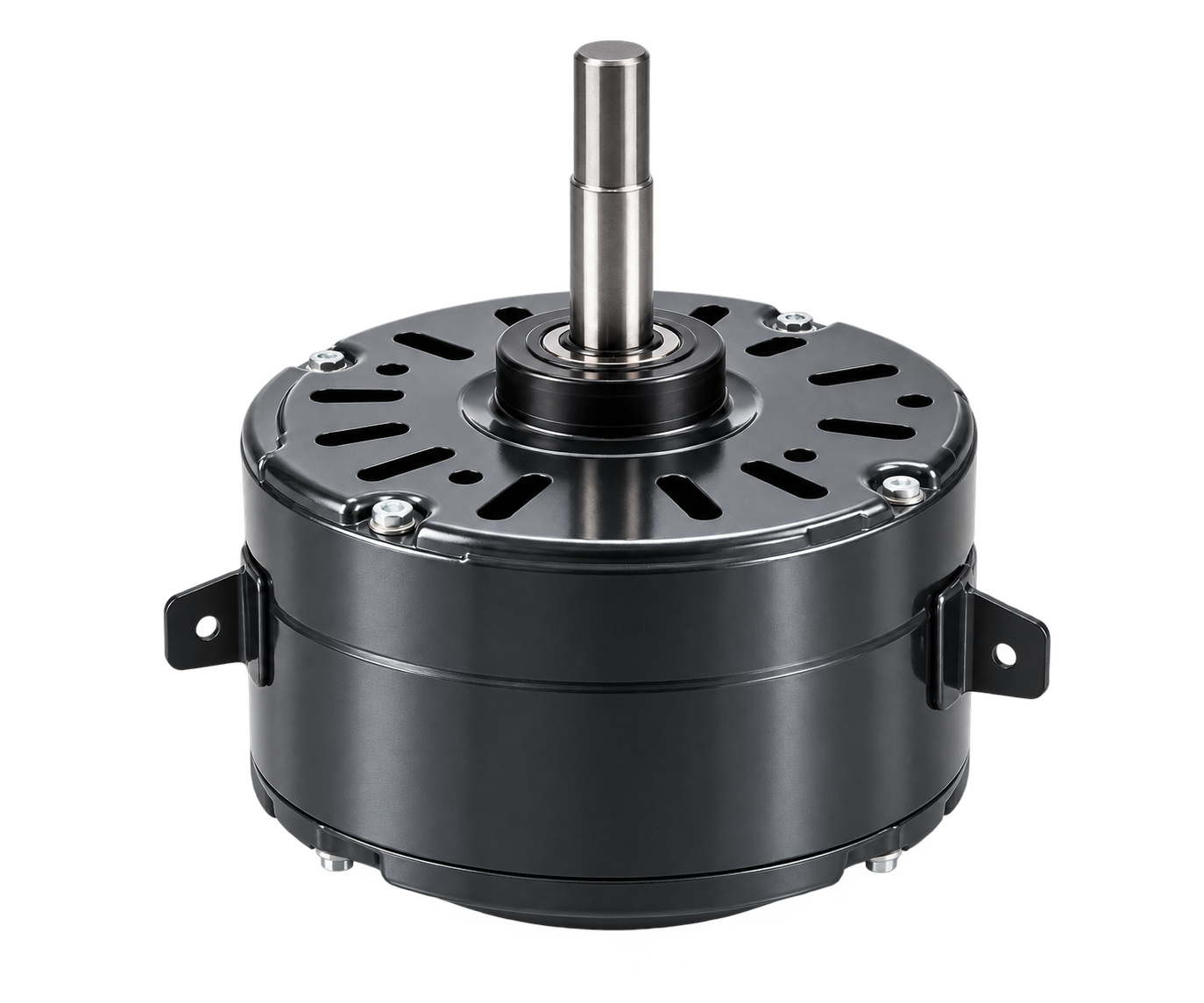

PSC Motor
Traditional Motor Configuration
Fixed or limited speed control
Less efficient operation under certain part-load conditions
Limited control flexibility
Speed control typically relies on motor taps or external switching
PSC TO ECM CONVERSION
Upgrade from PSC to ECM
for Better Efficiency & Control
Convert your existing PSC motor platform to a matched ECM motor + external driver solution. Improve part-load efficiency and add flexible speed control while maintaining the mechanical and performance requirements of your HVAC equipment.
Same Equipment
Higher Efficiency
Why Convert a PSC Motor to ECM?
Many HVAC systems still rely on PSC motors with fixed or limited speed control. When an OEM needs to upgrade an existing equipment platform, replacing aging motor technology or introducing more flexible airflow control, ECM motor conversion provides a practical path for engineering evaluation.
Upgrade the Motor Without Starting From Scratch
A successful PSC-to-ECM conversion is not simply a motor replacement. TACICON evaluates the existing blower load, airflow and static pressure requirements, mounting configuration, electrical supply and control interface to develop a matched ECM motor and external driver solution.
Where feasible, this approach can help retain existing equipment components while introducing variable-speed operation and more flexible motor control.
From PSC Motor to ECM Motor + External Driver
Upgrade motor performance and control flexibility while evaluating opportunities to retain existing HVAC equipment components.
UPGRADE
ECM Motor + External Driver
Flexible Motor & Control Architecture
Variable-speed operation
Potential for improved part-load efficiency
Flexible control options0–10V / PWM / 3-Speed*
Motor and driver matched to application requirements
Existing PSC System
- AC Supply
- PSC Motor
- Fan / Blower
Fixed or limited speed control · Conventional motor configuration
TACICON ECM Solution
- AC Supply
- External Driver
- ECM Motor
- Fan / Blower
Variable-speed operation · Application-specific motor and control matching
Why an External Driver?
TACICON's external driver architecture allows ECM motor performance and control interfaces to be configured around existing HVAC equipment requirements. Supported sensorless driver options provide additional flexibility for selected conversion projects.
More Flexibility
for HVAC Innovation
Motor & Driver Matching
Match ECM motor performance to the existing blower load.
Control Compatibility
Evaluate existing HVAC signals, wiring and control interfaces.
Sensorless Motor Control
Support Hall-sensor-free operation on compatible configurations.
Service Flexibility
Allow separate motor and driver servicing where accessible.
What Needs to Be Evaluated?
We evaluate your existing PSC motor, HVAC equipment and control requirements to develop a matched ECM conversion solution.
01 Existing PSC System
Motor · Blower · Nameplate · Wiring
02 Mechanical Fit
Dimensions · Shaft · Mounting · Available Space
03 Performance
Airflow · ESP · RPM · Torque · Power
04 Electrical
Input Voltage · Wiring · Power Requirements
05 Control Integration
Speed Taps · Relay Logic · 0–10V · PWM · Multi-Speed · RS485
EXISTING HVAC CONTROL COMPATIBILITY
Can Your Existing Controls Be Retained?
TACICON evaluates existing thermostat signals, fan-speed commands, wiring arrangements and HVAC control board interfaces to determine whether they can be retained or require adaptation for ECM operation.
Existing Controls
Thermostat / Control Board / Wiring
Interface Evaluation
Signal Compatibility / Adaptation
ECM Driver Configuration
Matched Control Interfaces
CONVERSION PROCESS
From Existing PSC System to a Matched ECM Solution
- 01
Existing System Review
PSC Motor · Blower · Wiring · Control
- 02
Performance Evaluation
Airflow · ESP · RPM · Torque
- 03
ECM & Driver Matching
Motor · Driver · Control Strategy
- 04
Prototype Integration
Mechanical · Electrical · Control
- 05
Application Validation
Performance · Function · Reliability
- 06
Production Support
Final Configuration / Mass Production
PSC → ECM APPLICATIONS
Where PSC → ECM Conversion Makes Sense
Matched ECM motor and external driver conversion solutions for existing HVAC equipment.
Technical FAQ
Can a PSC motor be replaced with an ECM motor?
Yes. TACICON can evaluate the replacement of an existing PSC motor with a matched ECM motor and external driver. Compatibility depends on motor performance, mechanical dimensions, electrical supply and HVAC control requirements. Prototype testing is recommended before implementation.
Is PSC-to-ECM conversion possible for every motor?
Not necessarily. Conversion feasibility depends on the existing blower load, airflow and static pressure requirements, available installation space, electrical specifications and control compatibility. Each application requires an engineering evaluation.
What needs to change when converting from PSC to ECM?
Depending on the application, conversion may require changes to the motor, external driver, wiring, mounting arrangements and speed-control interface. Existing blower components and HVAC controls may be retained where compatibility is confirmed.
What information is needed to evaluate a PSC-to-ECM conversion?
Please share the existing PSC motor model or nameplate, voltage, power rating, speed, shaft and mounting dimensions, and available drawings. Blower specifications, airflow and static pressure requirements, wiring diagrams and control signals are also helpful.
Can the existing fan or blower be retained?
In many cases, the existing fan or blower may be retained if its mechanical connection, operating speed, airflow and static pressure requirements are compatible with the selected ECM motor. TACICON evaluates the blower and motor together to determine a suitable configuration.
Can the existing thermostat or HVAC control board be retained?
Possibly. TACICON evaluates the existing thermostat, HVAC control board, wiring and fan-speed signals to determine whether they can interface with the external ECM driver. Signal adaptation or control modifications may be required.
What control options are available after conversion?
Depending on the selected external driver, available options may include 0–10V, PWM, multi-speed inputs and RS485 communication. Control functions and interfaces can be configured according to the HVAC application and driver capabilities.
What is the typical development timeline for a PSC-to-ECM conversion?
Development time depends on motor compatibility, customization requirements, prototype testing and application validation. TACICON can provide an estimated project timeline after reviewing the existing motor specifications and conversion requirements.
LET'S BUILD YOUR PSC-TO-ECM SOLUTION TOGETHER
Ready to Upgrade Your PSC Motor to ECM?
Share your existing PSC motor model, nameplate, wiring diagram or HVAC equipment requirements. TACICON will evaluate conversion feasibility and recommend a matched ECM motor and external driver solution.
