Why ECM Motors for Dehumidifiers & Humidifiers?

Dehumidifiers and humidifiers rely on controlled airflow to remove or add moisture effectively. Because humidity-control equipment may operate for extended periods and under changing moisture loads, the fan motor must support efficient, stable and controllable airflow across different operating conditions.

Compared with conventional PSC motors, ECM motors provide higher motor efficiency and more flexible speed control. Motor RPM and torque can be matched around the blower, airflow requirement and system operating point, while different speed settings allow equipment manufacturers to adapt airflow to changing humidity demand and operating modes.

With a matched blower/impeller and external motor driver, TACICON can configure the motor and control around the equipment’s required airflow, RPM, torque, power and control interface—giving dehumidifier and humidifier OEMs greater flexibility in motor integration and equipment development.

Airflow Control

Flexible blower-speed configuration for different equipment operating requirements.

Higher Motor Efficiency

Higher motor efficiency than conventional PSC motors for long-running HVAC applications.

Blower Performance Matching

Motor RPM and torque matched around the blower and system operating point.

Flexible Control Integration

3-Speed, 0–10V, PWM and Modbus options depending on driver configuration.

ECM Blower Control for Humidity Management

Flexible Blower Speed for Different Air-Treatment Requirements

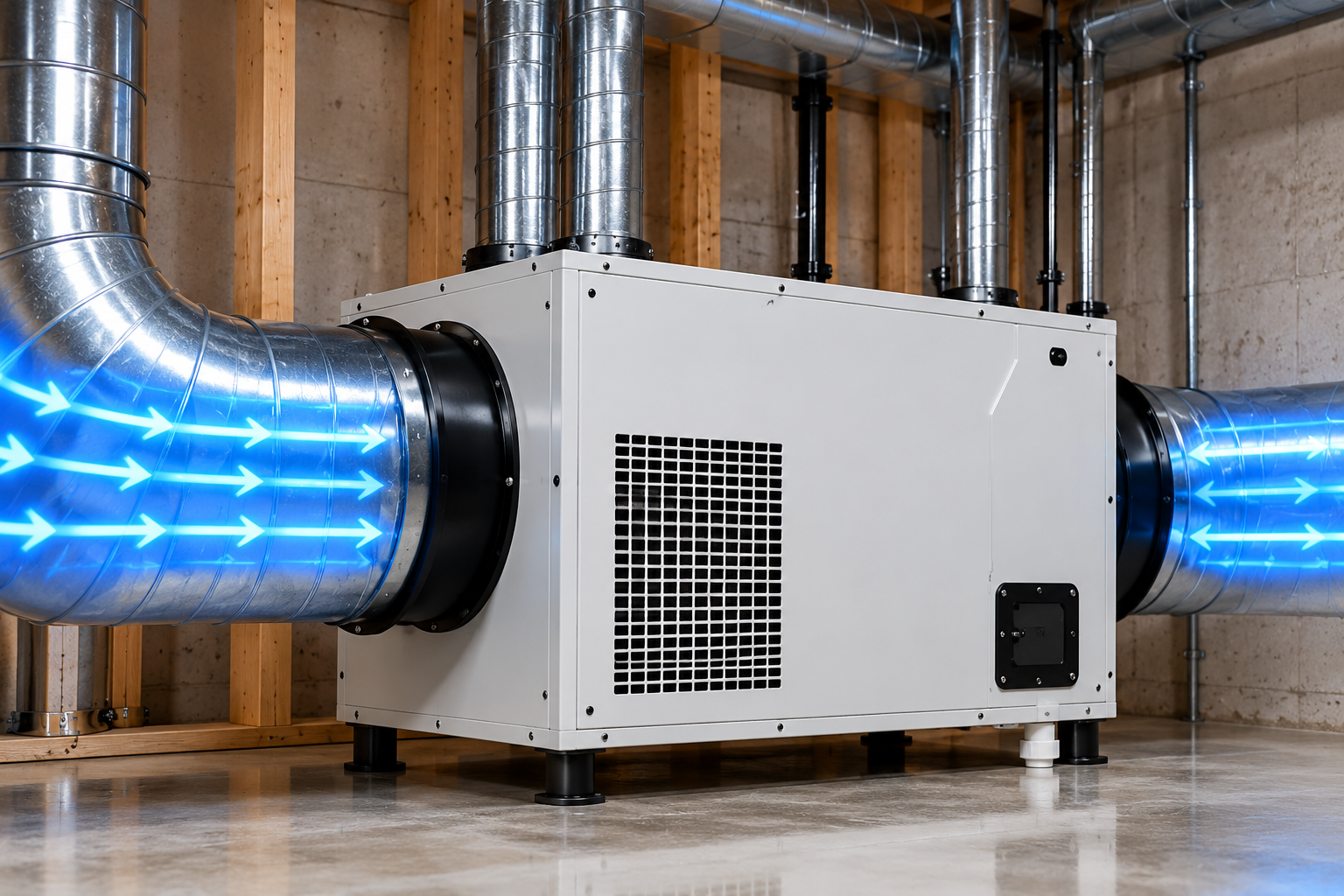

Ducted dehumidifier with illuminated airflow arrows moving through the unit

Dehumidification

Airflow Through the Dehumidifier

Motor speed can be configured around the airflow required through the dehumidifier’s air-treatment and heat-exchange sections.

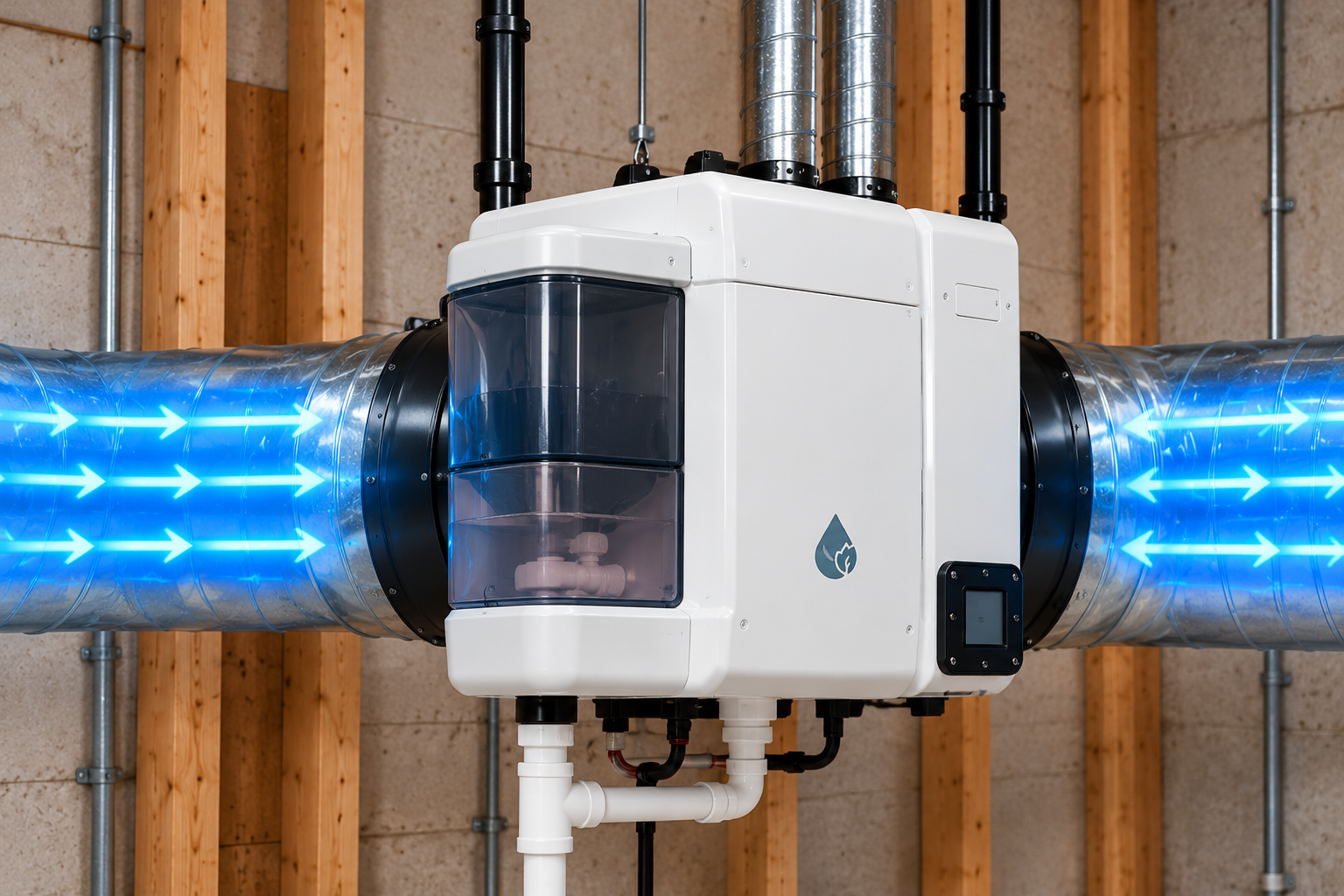

Duct-mounted humidifier with illuminated airflow arrows moving through the unit

Humidification

Airflow Through the Humidification Section

ECM blower operation can be matched to the airflow requirements of the humidification process and equipment design.

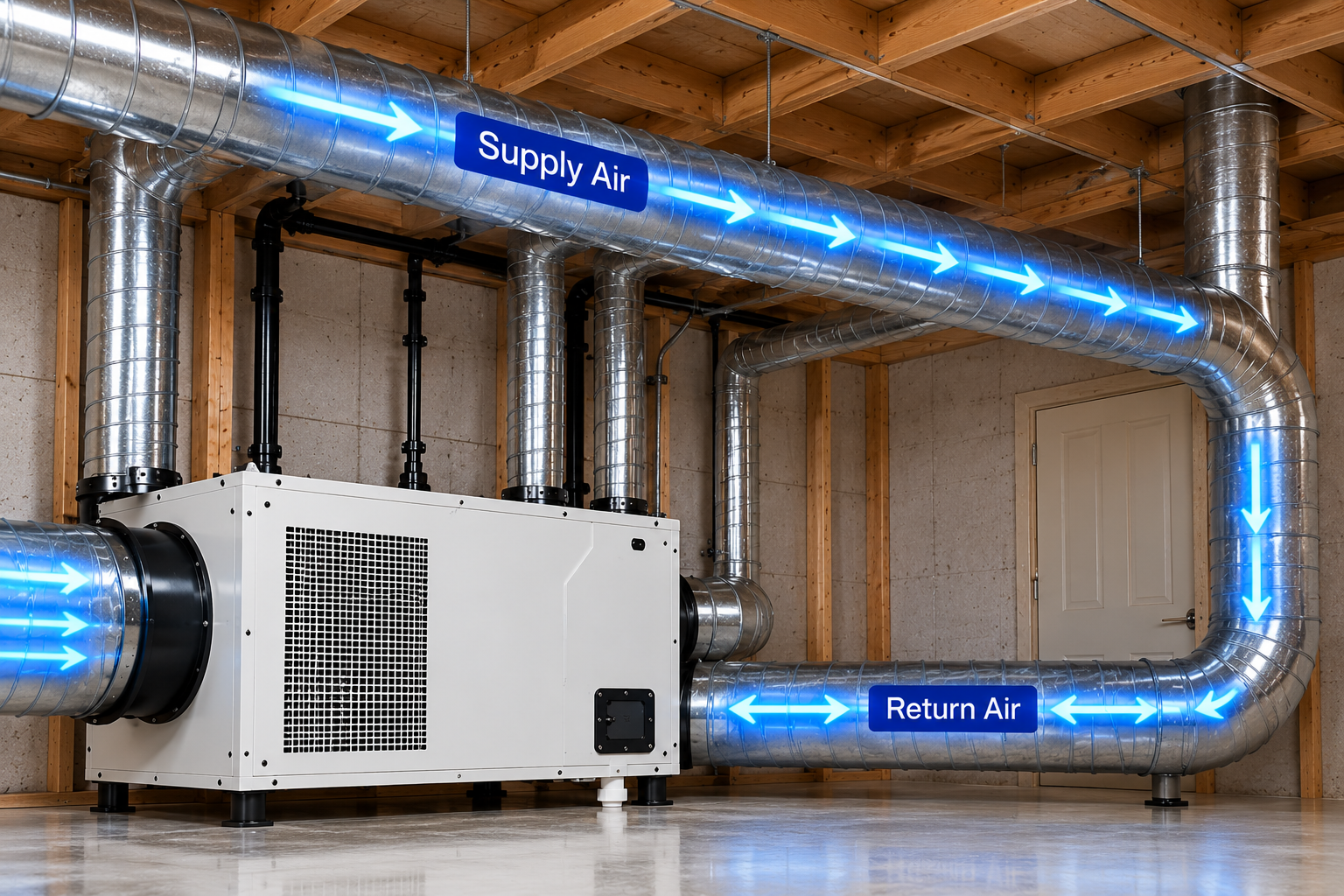

Continuous Air Circulation

Air Movement Between Humidity Cycles

Separate blower-speed settings can support continuous or intermittent air circulation according to the equipment control strategy.

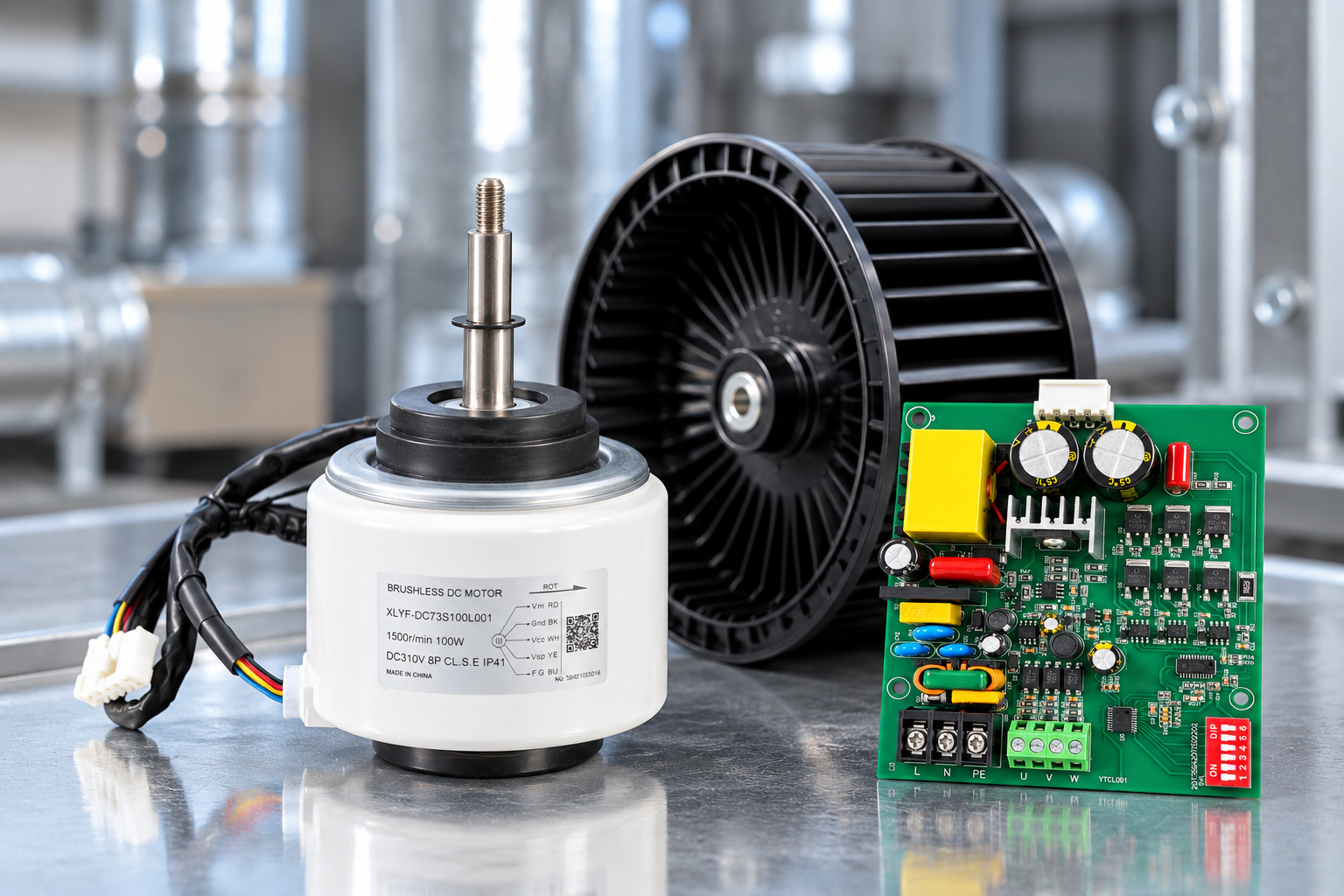

ECM motor, centrifugal impeller and external driver board for adjustable airflow

Airflow Adjustment

Application-Specific Speed Configuration

Blower speed can be configured through 3-Speed / 0–10V / PWM / Modbus depending on the external driver configuration.

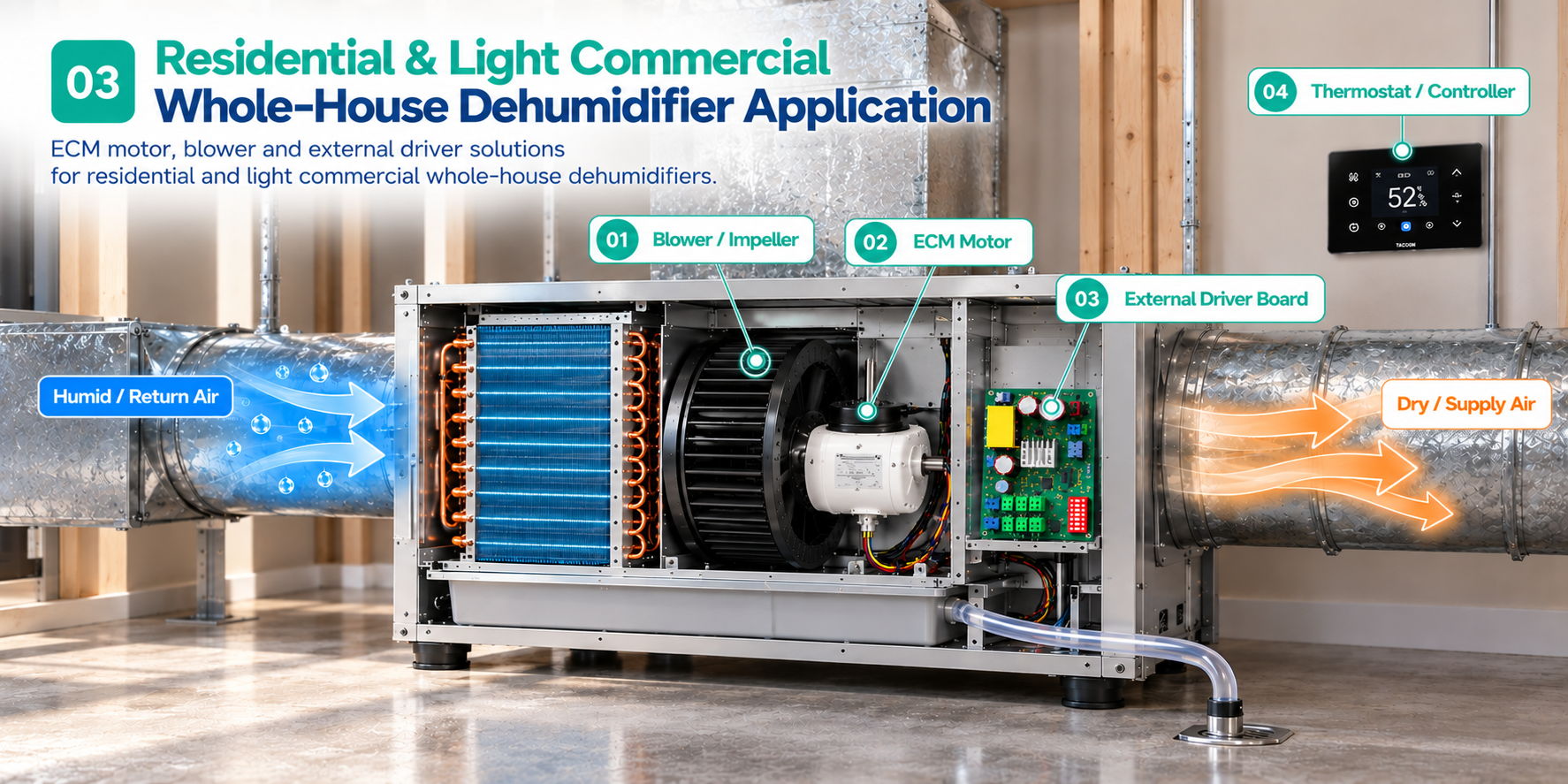

Residential and light commercial whole-house dehumidifier application showing blower, ECM motor, external driver board, thermostat controller, and humid return and dry supply airflow

DEHUMIDIFIER AIRFLOW

Airflow Through the Dehumidification Process

ECM blower speed can be configured around the airflow requirements of the dehumidification process, moving return air through the filter, evaporator coil and optional condenser / reheat section before supplying drier air back to the HVAC system.

Humid
Return Air

Warm, humid air from indoor spaces

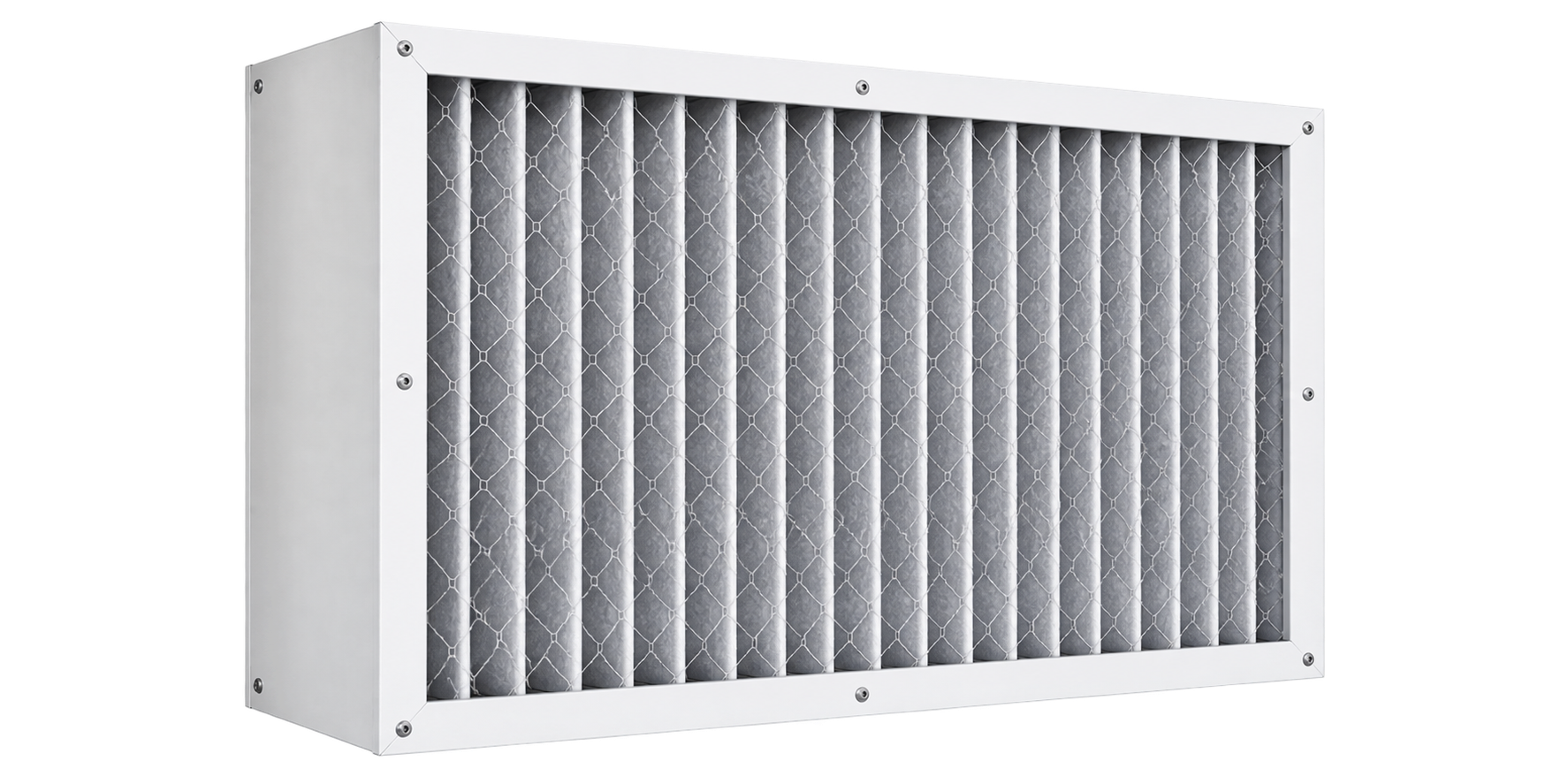

HVAC air filter — **Filter**Captures dust and particles
before the coil

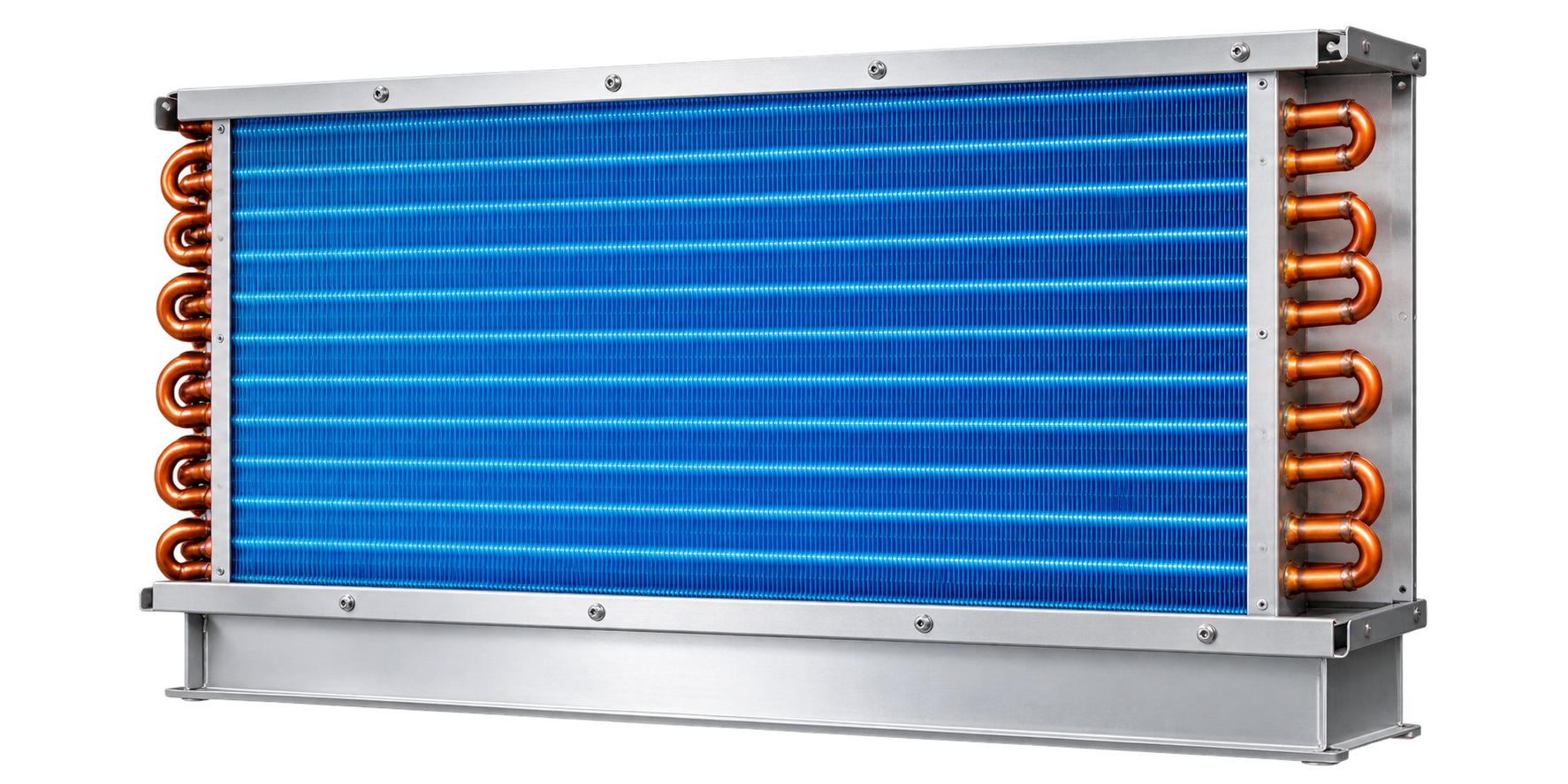

Blue evaporator coil — **Evaporator Coil**Cools the air and
moisture condenses on the coil

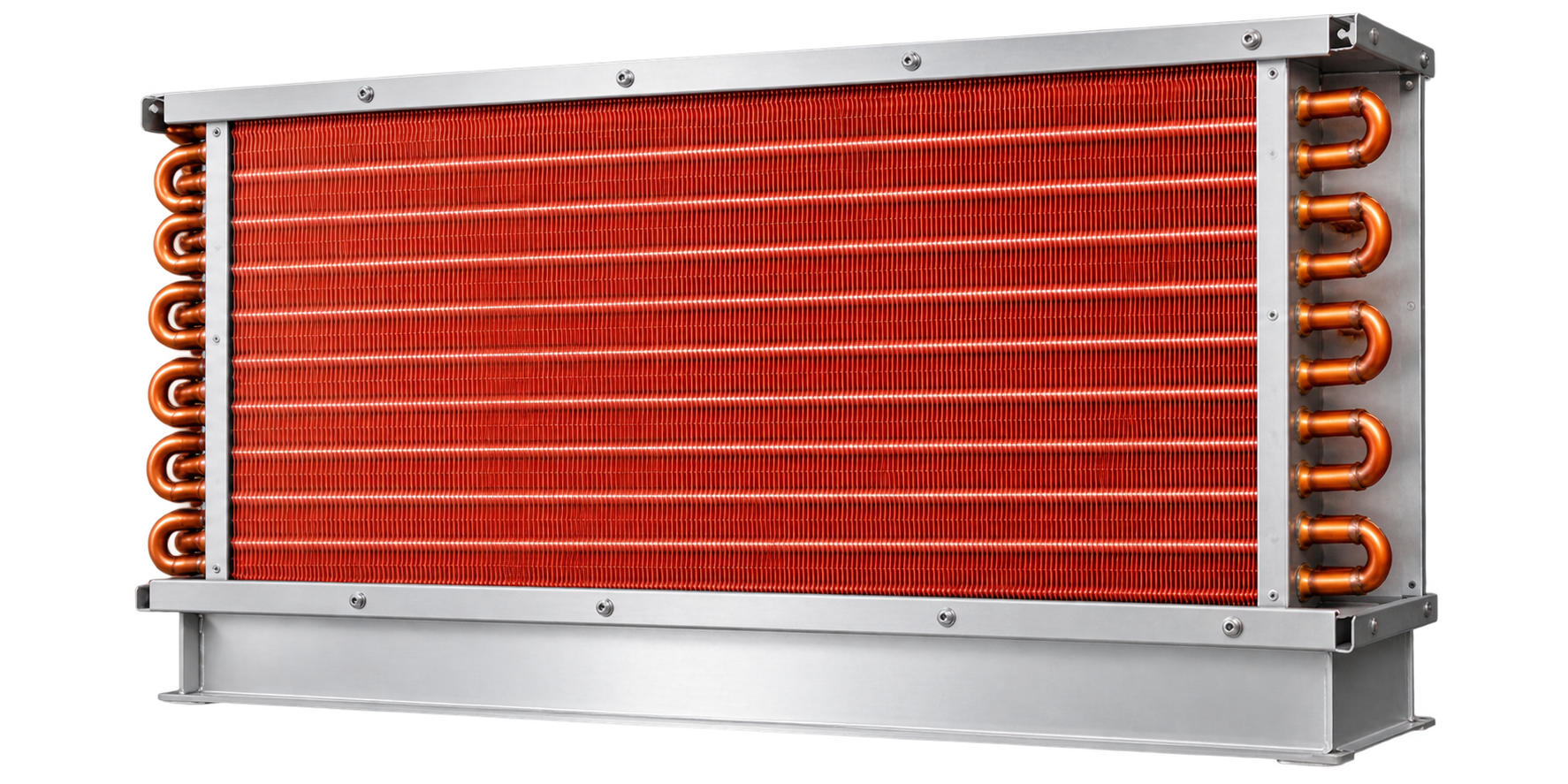

Red condenser and reheat coil — Condenser / Reheat
(Optional)Reheats the air to a suitable
supply temperature

Dry
Supply Air

Drier air back to the HVAC system

VARIABLE AIRFLOW

Different Humidity Loads Need Different Airflow Strategies

ECM motor speed can be configured around the operating strategy defined by the dehumidifier manufacturer, allowing different blower speeds to support changing humidity loads and equipment operating conditions.

High humidity operation with higher airflow and higher ECM motor speed

Approaching humidity setpoint with medium airflow and medium ECM motor speed

Humidity maintenance operation with lower airflow and lower ECM motor speed

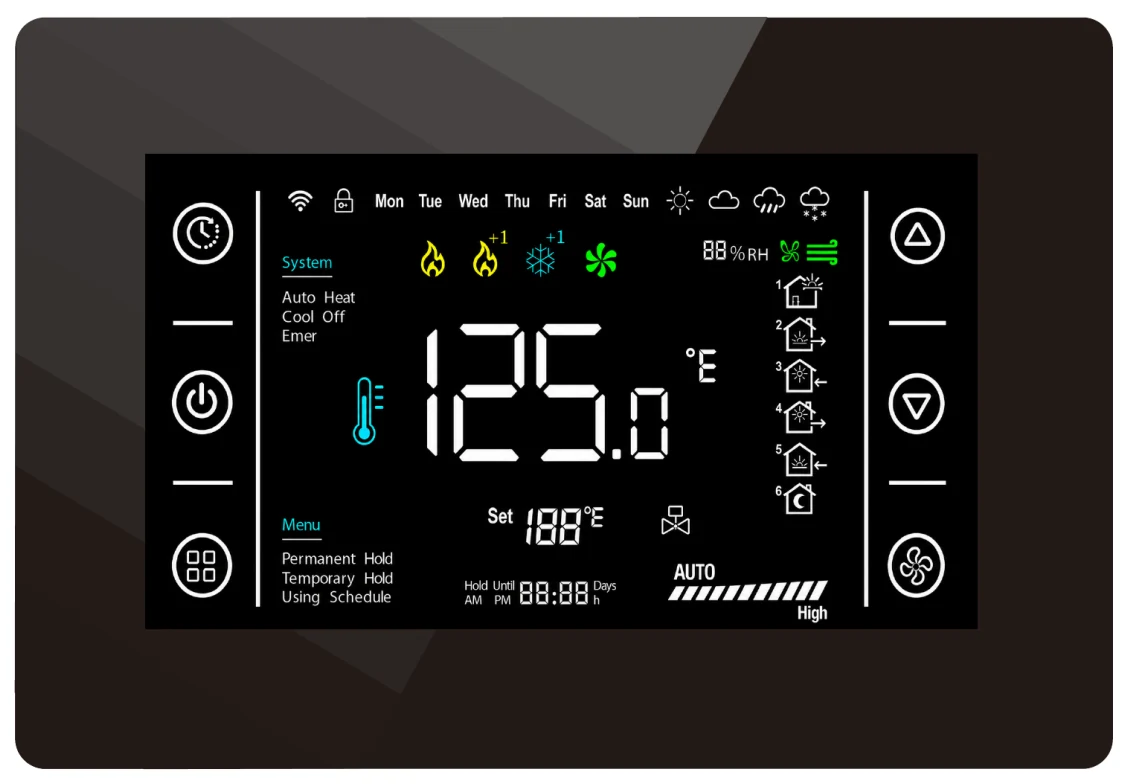

Humidity Control /
Equipment ControllerMonitors indoor humidity and sends control signal based on system strategy.

Control Signal3-Speed / 0–10V
PWM / Modbus

External Driver BoardReceives control signal and drives the ECM motor.

ECM MotorSpeed is adjusted according to the control signal.

Blower / ImpellerDelivers the required airflow at different speeds.

Blower speed follows the control strategy of the dehumidifier system.

Why an External Driver?

Separating the motor and driver gives HVAC OEMs greater flexibility in system design, thermal management, maintenance and motor selection.

More Flexibility
for HVAC Innovation

Faster Customization

Adapt driver hardware, firmware and control interfaces without necessarily redesigning the motor.

Fewer Motor Variants

Support different HVAC control requirements with a common motor platform and matched driver options.

Easier Service & Replacement

Separate motor and driver components allow more flexible maintenance and replacement strategies.

Better Thermal Separation

Position the driver away from motor heat and vibration for improved thermal management and system integration.

TECHNOLOGY SPOTLIGHT

Sensorless Control. External Driver Flexibility.

Our sensorless motor driver solutions support Hall-sensor-free BLDC motor operation, with motor-specific tuning and configurable control options.

No Hall Sensors Required

Sensorless commutation eliminates the need for Hall sensor feedback from the motor.

Motor-Specific Tuning

Driver parameters and firmware can be optimized for motor characteristics and application requirements.

Control Interface Options

Depending on the driver model, available interfaces include 3-speed, 0–10V and RS485 control.

TACICON sensorless external motor driver board

One Motor Platform.
More Possibilities.

TACICON brings together ECM motors, impellers, blower assemblies, external drivers and HVAC controls to support OEM system integration.

Explore Motor & Driver Solutions

Motor & Air System

Drive & Control

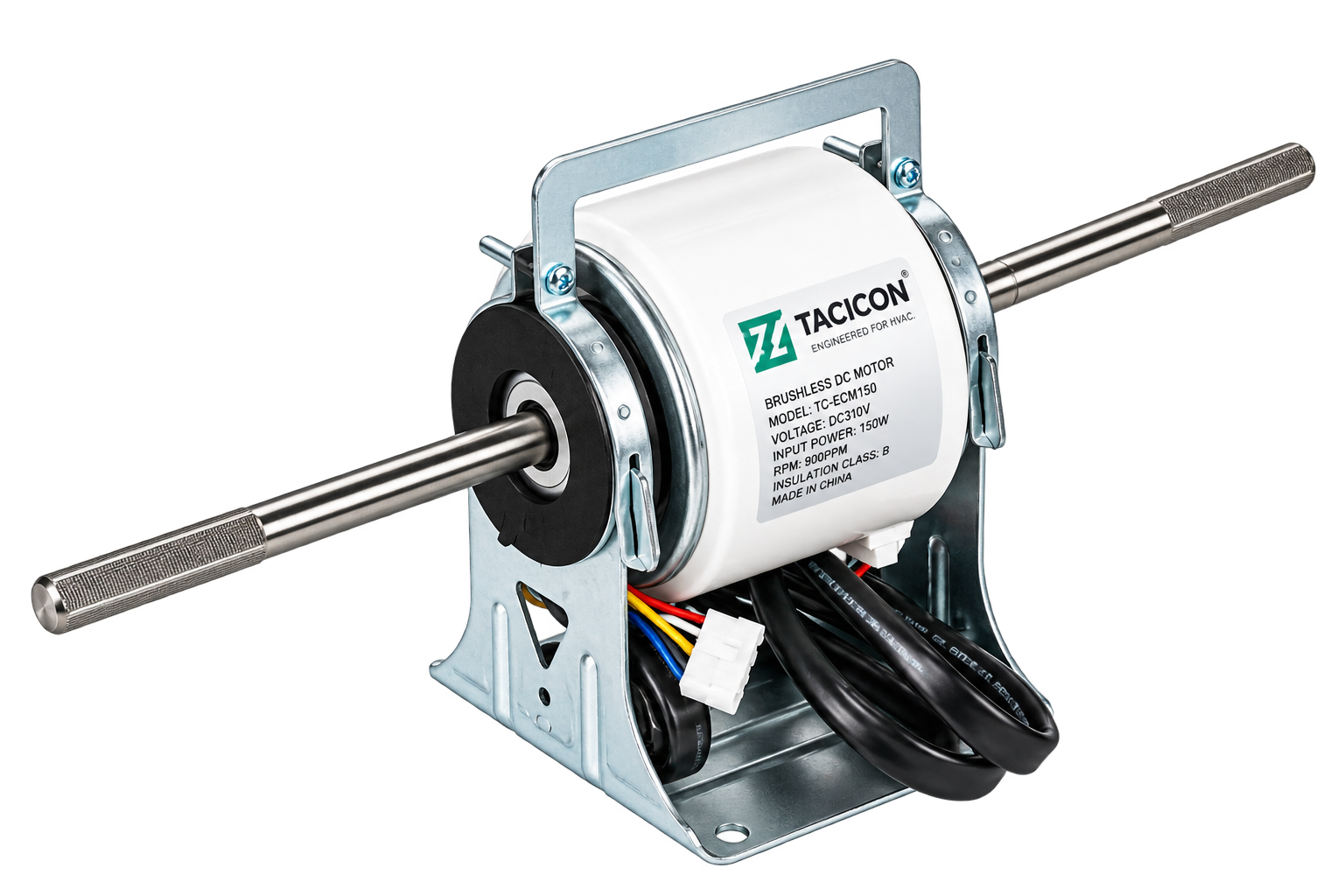

ECM Motor

10–750W (1 HP)Custom Motor Configurations

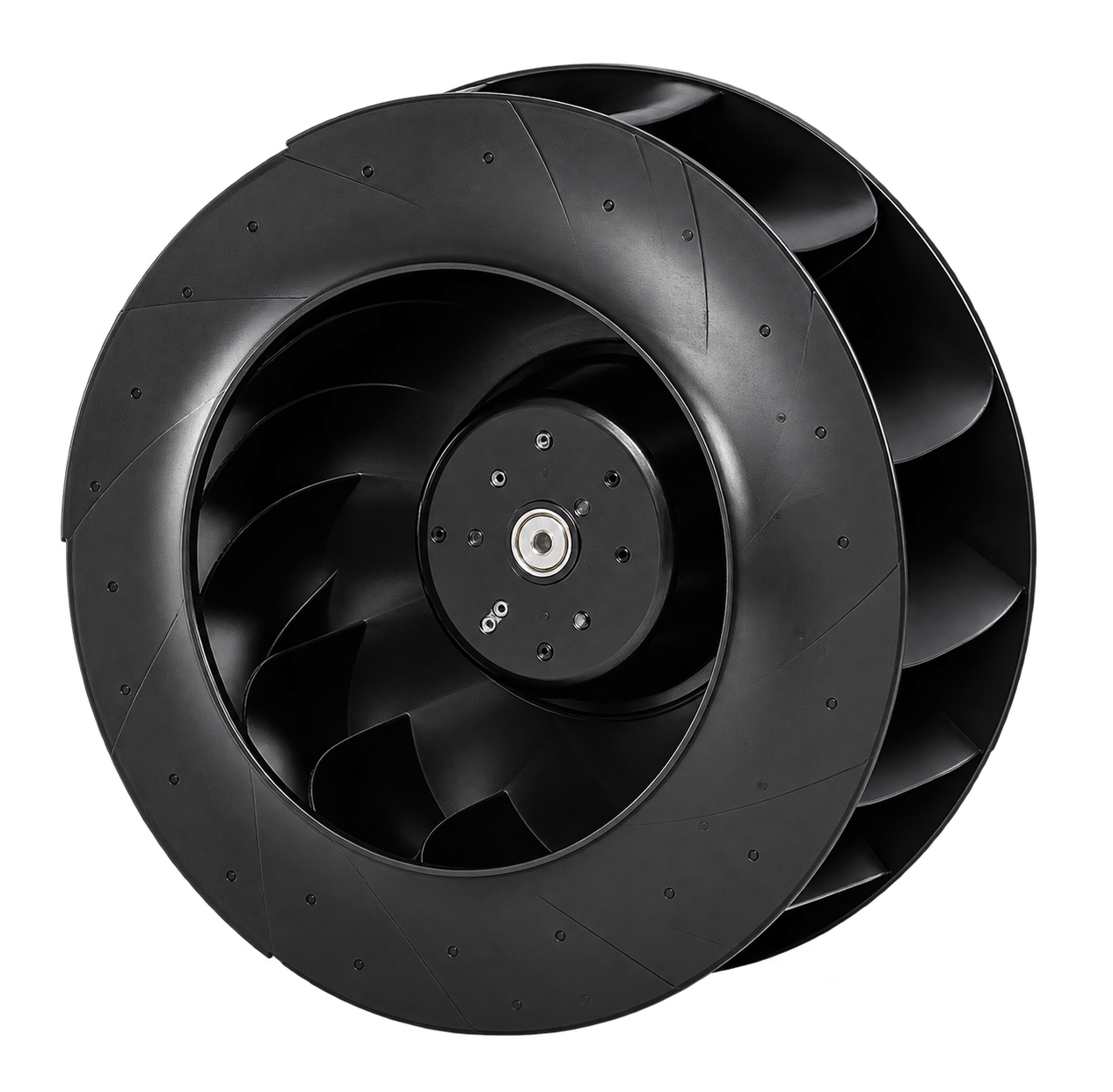

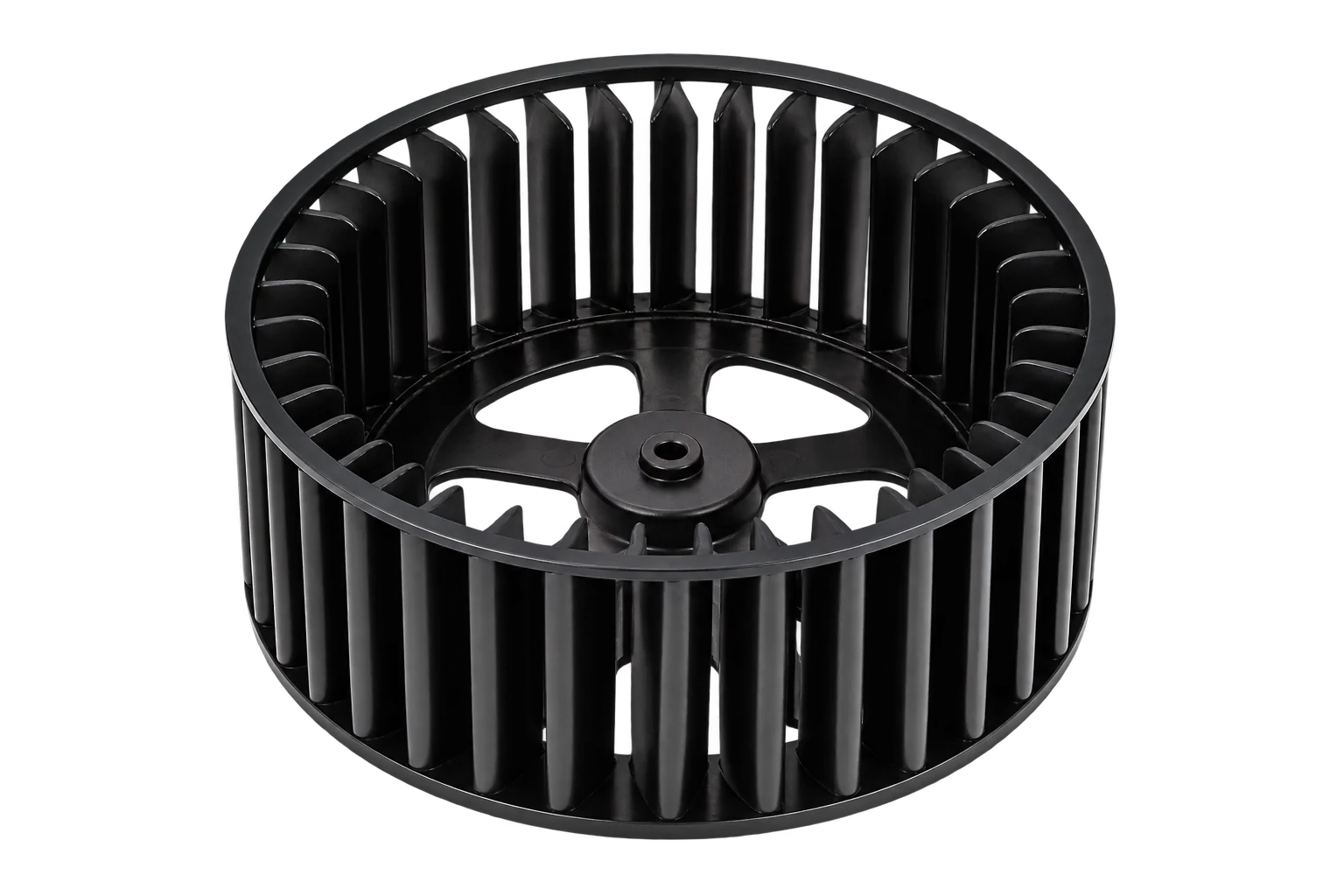

Impeller / Blower

Centrifugal · Axial · Cross-FlowAirflow & Static Pressure Matching

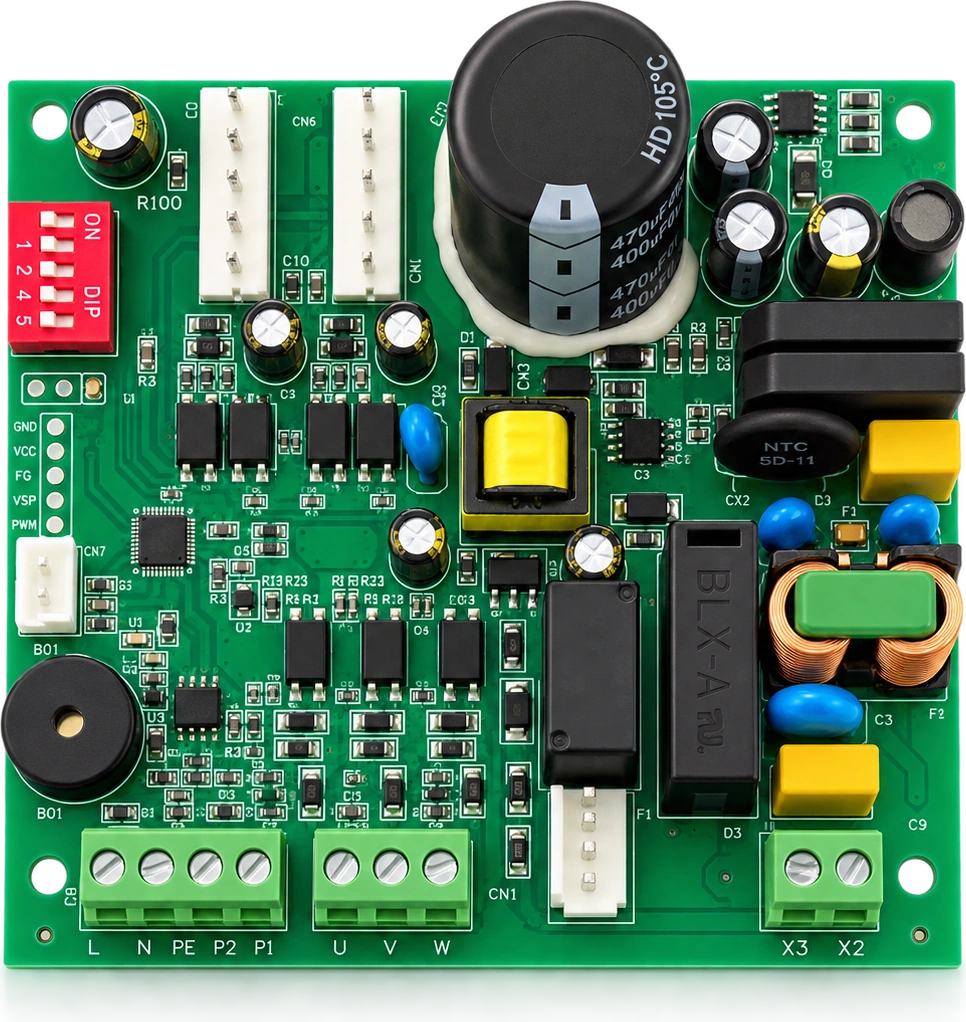

M5 ECM motor driver board, front view with a large capacitor and green screw terminals

External Motor Driver

3 Speed · 0–10V · Modbus · PWMCustom Hardware & Firmware

Thermostat / Control

Temperature · Fan · ValveCompressor Control

A Matched HVAC Motor & Control Solution

Engineered to Match Your Application

From Application Requirements
to Engineering Solutions

We work with dehumidifier and humidifier OEMs to match the ECM motor, blower, external driver and control configuration to specific airflow and equipment requirements.

Custom Engineering Process

Application Requirements
Dehumidifier / Humidifier · Airflow · ESP · Blower
Motor & Blower Engineering
RPM · Torque · Power · Shaft · Mounting
Driver & Control Development
3-Speed · 0–10V · PWM · Modbus
Firmware & Motor Tuning
Motor Parameters · Speed Control · Control Logic
Prototype & Validation
RPM · Motor Performance · Installation Fit
Mass Production
Approved Configuration

Technical FAQ

What ECM motor power range do you offer for dehumidifier and humidifier applications?

Our ECM motors cover approximately 10–750W (0.01–1 HP). For residential and light commercial dehumidifier and humidifier applications, the motor is selected according to the required blower, RPM, torque, airflow and equipment operating point.

What information do you need to select an ECM motor for our equipment?

Please provide the required airflow, ESP, blower or impeller information, target RPM, voltage, installation dimensions and control requirements. If available, you can also send the existing motor nameplate, drawing, datasheet or equipment specifications.

Can you match the ECM motor to our existing blower or impeller?

Yes. We can develop the motor solution around an existing blower or impeller by evaluating the required RPM, torque, power, shaft, mounting and operating conditions.

Can blower speed be adjusted for different humidity operating modes?

Yes. Different motor-speed settings can be configured according to the equipment control strategy. The external driver can support different speed commands for dehumidification, humidification, circulation or other application-specific operating modes.

What motor control options are available?

Depending on the external driver configuration, control options can include 3-Speed, 0–10V, PWM and Modbus. Control interfaces and speed settings can be configured around OEM application requirements.

Can you customize the motor and external driver for our dehumidifier or humidifier?

Yes. We support customization of the motor, shaft, mounting, external driver, control interface and firmware according to the equipment requirements and installation space.

Can you provide the blower or impeller together with the ECM motor?

Yes. TACICON can provide an integrated ECM motor + external driver + impeller / blower solution, with motor RPM and torque matched around the required blower operating point.

How do you develop an ECM motor solution for a new dehumidifier or humidifier project?

Our engineering process starts with the equipment, airflow, ESP, blower and control requirements, followed by motor and blower matching, driver and control development, firmware tuning, prototype evaluation and final configuration for mass production.
