Why ECM Motors for Compact Air Handlers?

Compact air handlers require reliable airflow performance within limited installation space. ECM motors offer flexible speed control and efficient operation, while matched motor and blower configurations help meet application-specific airflow and static pressure requirements.

TACICON supports compact air handler manufacturers with ECM motor, blower and external driver solutions tailored to mechanical dimensions, operating conditions and control interfaces.

Variable Airflow

Adjust motor speed for different airflow requirements and operating modes.

Compact Motor & Blower Integration

Match the motor, blower, shaft and mounting configuration to space-constrained air handler designs.

Airflow & Static Pressure Matching

Select motor RPM and torque around the required CFM, ESP and blower characteristics.

Flexible Speed Control

Configure multiple speed settings or variable-speed operation with 0–10V, Modbus and other control options.

FROM AIRFLOW REQUIREMENTS TO THE RIGHT ECM SOLUTION

Motor & Blower Matching for Compact Air Handlers

From airflow and static pressure requirements to motor performance and control configuration.

01
Target Airflow (CFM)
Confirm required airflow for the air handler application.
02
External Static Pressure (ESP)
Determine system resistance and required ESP.
03
Blower / Fan Selection
Select suitable blower type and size.
04
Required RPM & Torque
Calculate required motor speed and torque at the operating point.
05
ECM Motor Matching
Match motor output, shaft, mounting and electrical specifications.
06
Driver & Control Matching
Configure speed control and communication options (0–10V, Modbus, etc.).

Blower and system curve with the required operating point

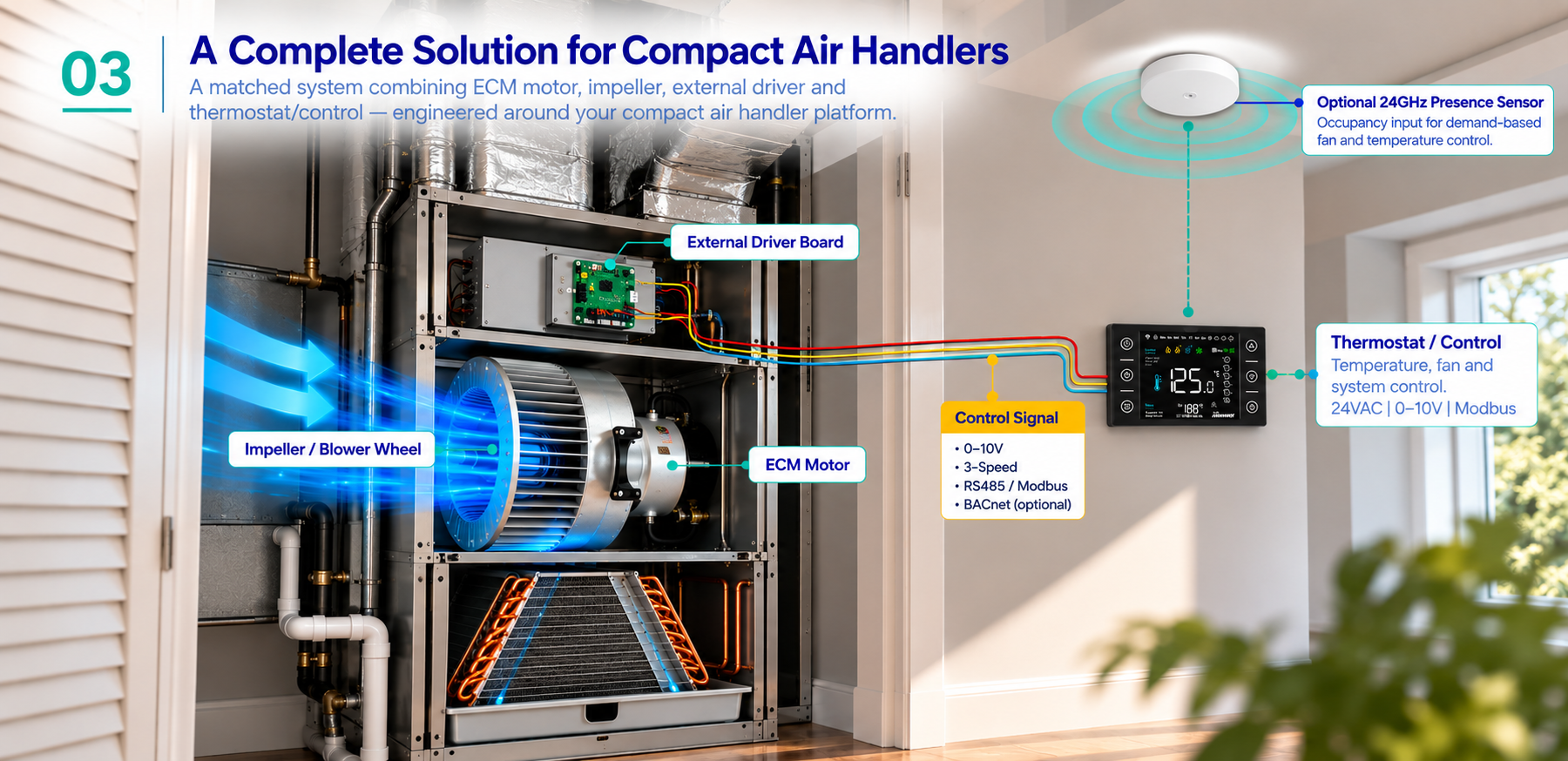

Complete ECM motor, blower, external driver and control solution for compact air handlers

Why an External Driver?

Separating the motor and driver gives HVAC OEMs greater flexibility in system design, thermal management, maintenance and motor selection.

More Flexibility
for HVAC Innovation

Faster Customization

Adapt driver hardware, firmware and control interfaces without necessarily redesigning the motor.

Fewer Motor Variants

Support different HVAC control requirements with a common motor platform and matched driver options.

Easier Service & Replacement

Separate motor and driver components allow more flexible maintenance and replacement strategies.

Better Thermal Separation

Position the driver away from motor heat and vibration for improved thermal management and system integration.

TECHNOLOGY SPOTLIGHT

Sensorless Control. External Driver Flexibility.

Our sensorless motor driver solutions support Hall-sensor-free BLDC motor operation, with motor-specific tuning and configurable control options.

No Hall Sensors Required

Sensorless commutation eliminates the need for Hall sensor feedback from the motor.

Motor-Specific Tuning

Driver parameters and firmware can be optimized for motor characteristics and application requirements.

Control Interface Options

Depending on the driver model, available interfaces include 3-speed, 0–10V and RS485 control.

TACICON sensorless external motor driver board

One Motor Platform.
More Possibilities.

TACICON brings together ECM motors, impellers, blower assemblies, external drivers and HVAC controls to support OEM system integration.

Explore Motor & Driver Solutions

Motor & Air System

Drive & Control

ECM Motor

10–750W (1 HP)Custom Motor Configurations

Impeller / Blower

Centrifugal · Axial · Cross-FlowAirflow & Static Pressure Matching

M5 ECM motor driver board, front view with a large capacitor and green screw terminals

External Motor Driver

3 Speed · 0–10V · Modbus · PWMCustom Hardware & Firmware

Thermostat / Control

Temperature · Fan · ValveCompressor Control

A Matched HVAC Motor & Control Solution

Engineered to Match Your Application

ADAPTING TO CHANGING SYSTEM RESISTANCE

Airflow Control Under Changing System Conditions

As filter resistance and duct pressure change, the operating point of the blower can shift. With appropriate motor, driver and control configuration, TACICON supports airflow performance tailored to changing system conditions.

Clean Filter

Low System Resistance

Lower motor load for the required airflow.

Design Condition

Normal System Resistance

Motor operates at the matched RPM and torque.

Higher Resistance

Dirty Filter / Increased ESP

Motor operation adjusts to compensate for increased system resistance.

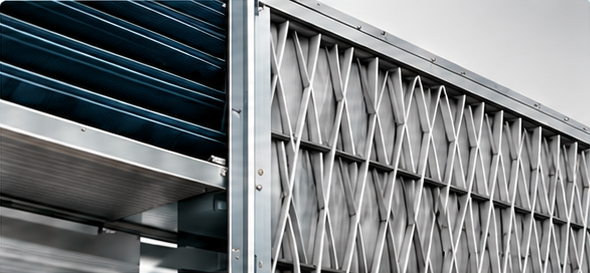

HVAC coil and pleated air filter in an air handler

Designed for Real-World HVAC Conditions

Motor, blower and driver parameters can be matched around your air handler’s airflow and static-pressure requirements.

Compact Air Handler Configurations We Support

ECM motor, blower and external driver solutions for common compact air handler configurations.

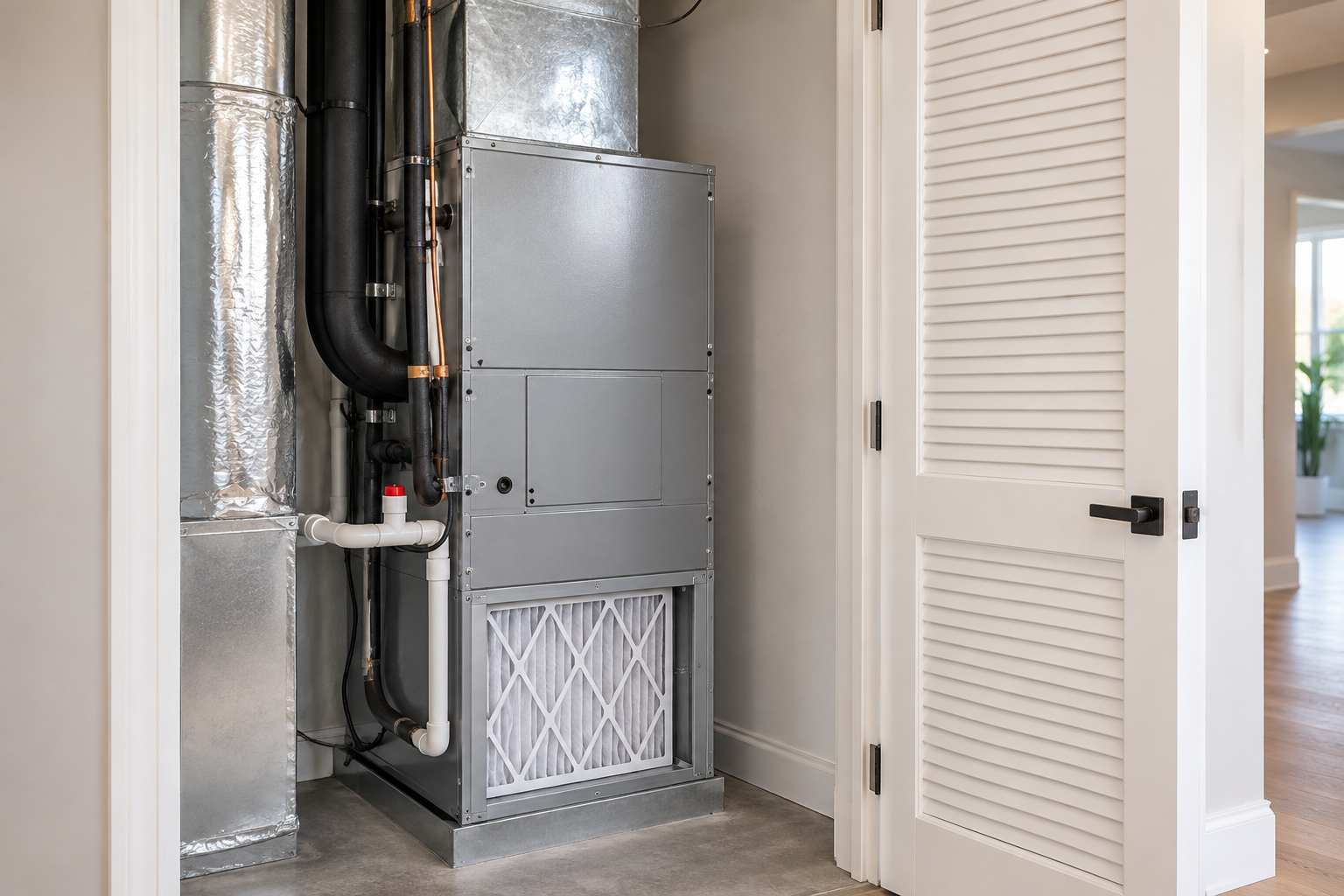

Vertical / Upflow Air Handlers

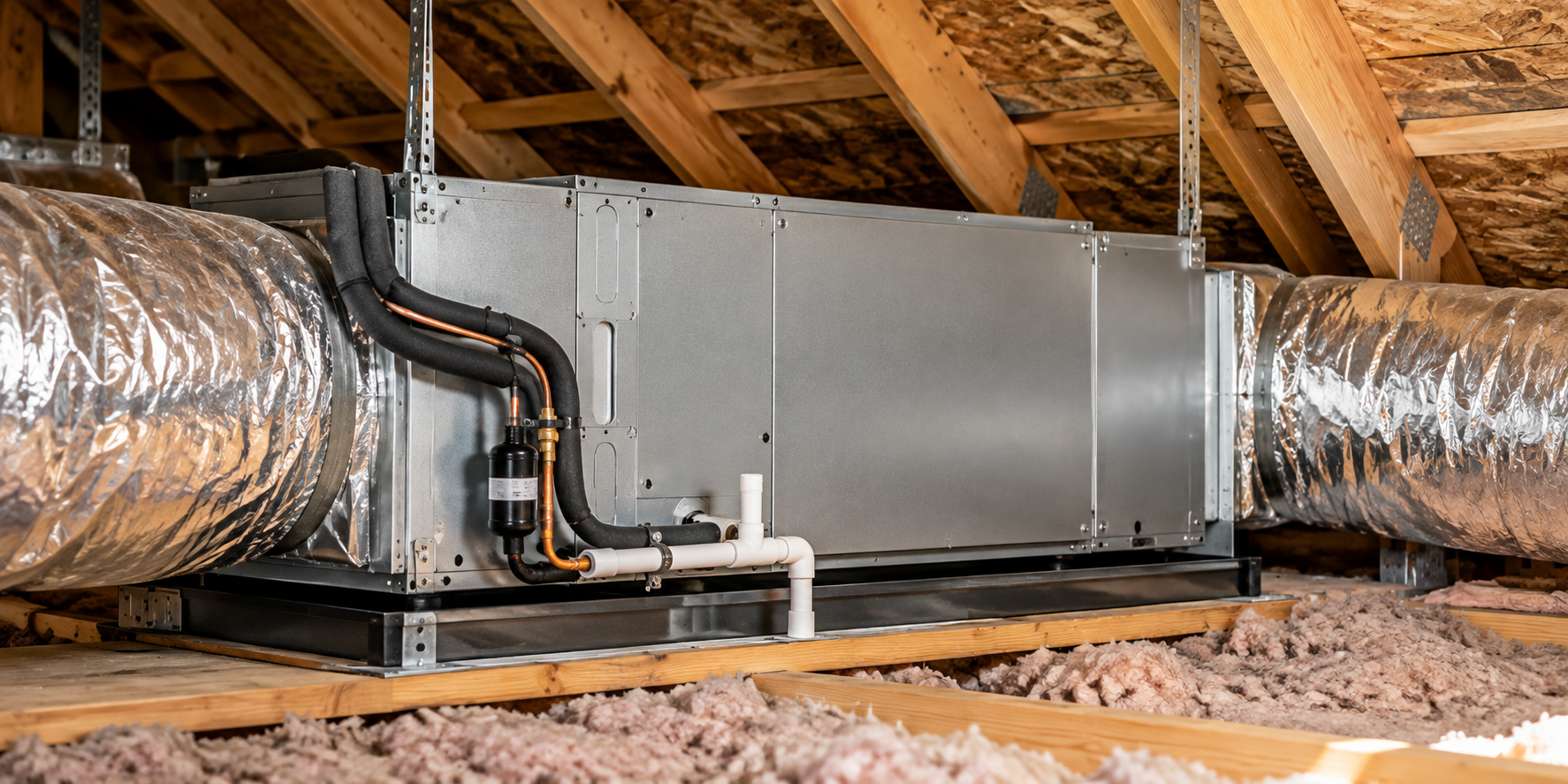

Horizontal Air Handlers

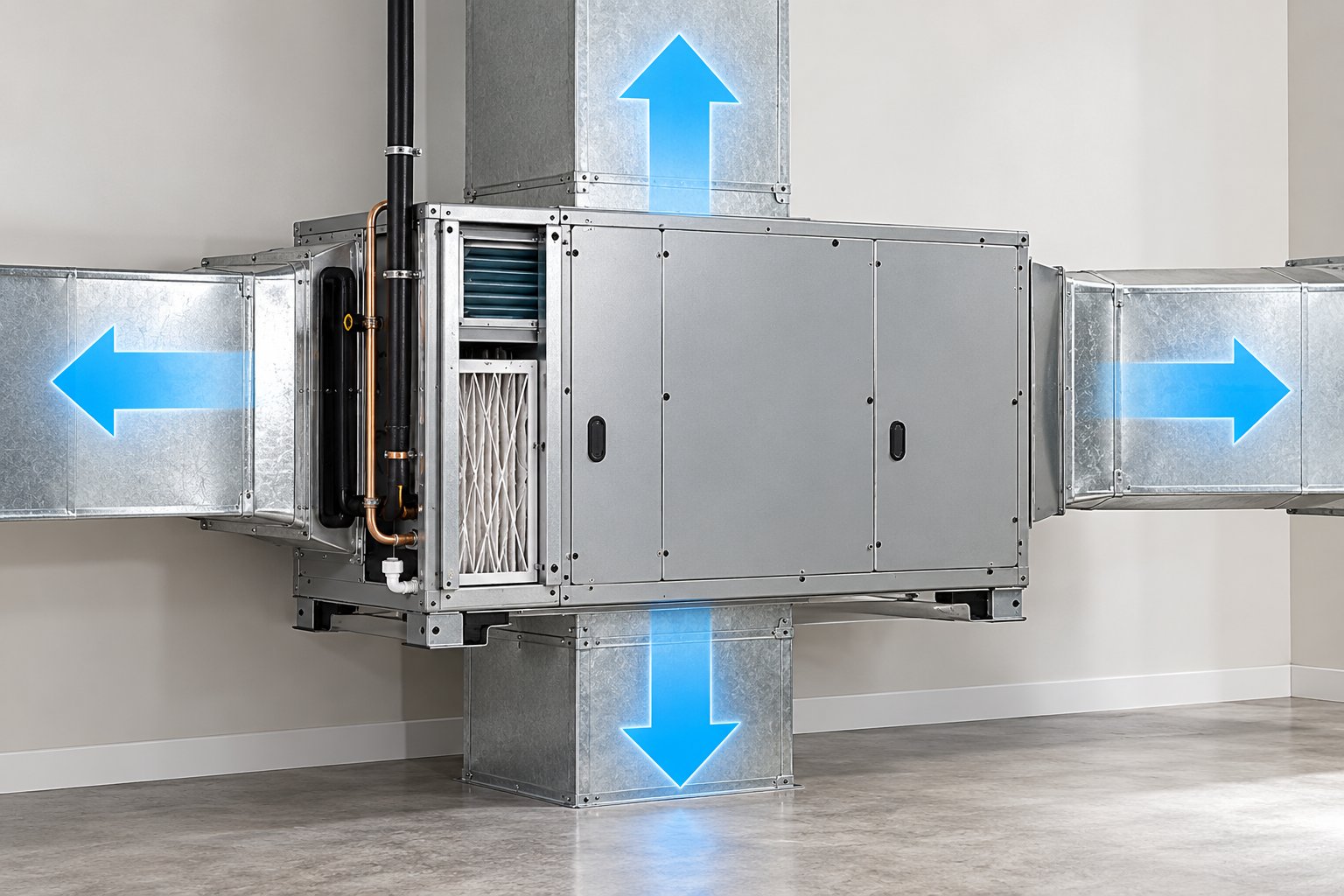

Multi-Position Air Handlers

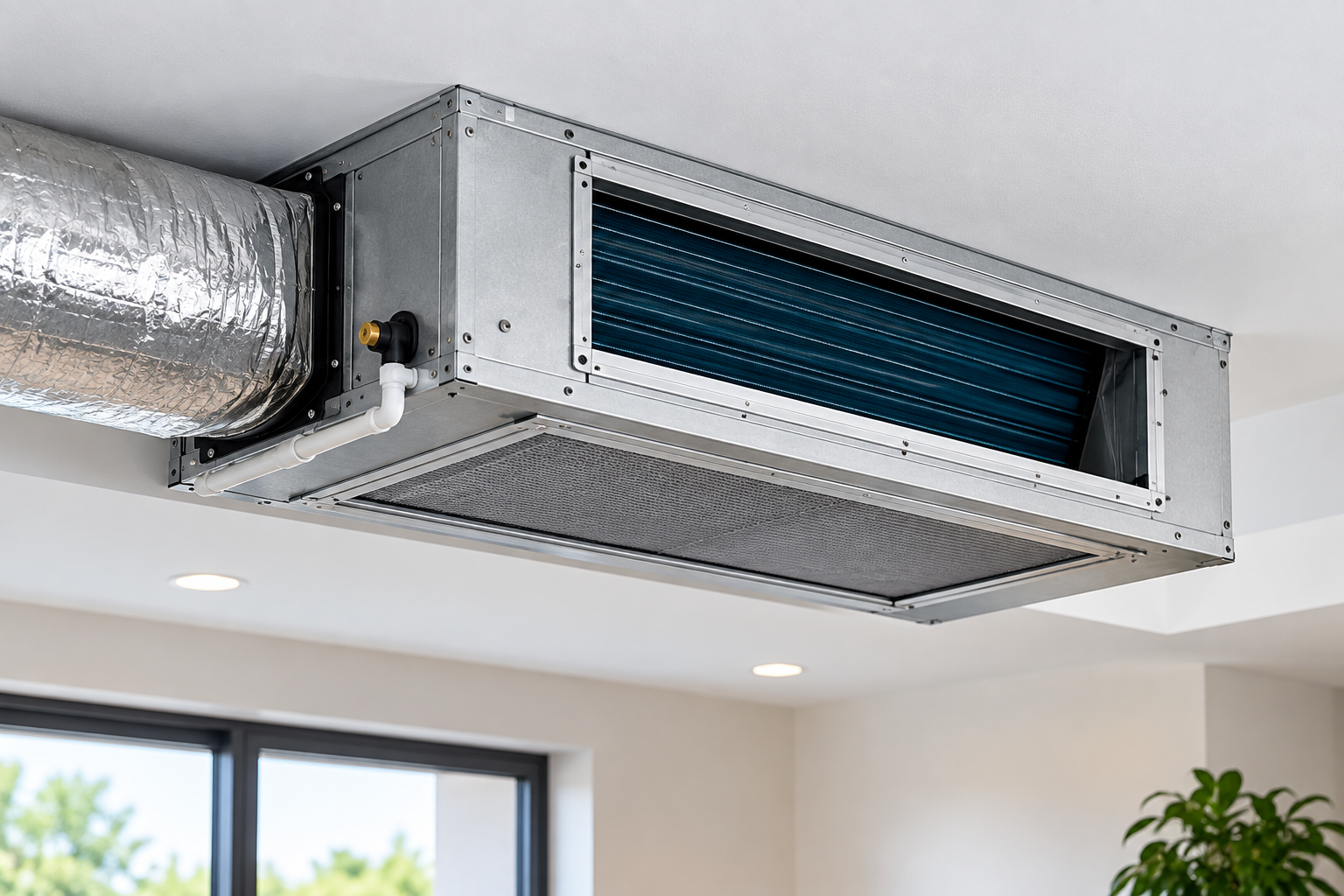

Wall / Ceiling Compact Air Handlers

From Application Requirements
to Engineering Solutions

TACICON supports compact air handler OEMs with motor and blower matching, driver configuration, prototype validation and customized production.

Explore Our Custom Engineering Process

Application Requirements
Motor & Blower Matching
Driver Configuration
Validation & Production

Technical FAQ

1. How do you match an ECM motor to a compact air handler?

TACICON evaluates the required airflow (CFM), external static pressure (ESP), blower characteristics, operating speed, torque, electrical specifications and installation dimensions. Based on these requirements, we select or customize a suitable ECM motor, blower and external driver configuration for the application.

2. Can TACICON support different airflow and ESP requirements?

Yes. TACICON provides motor and blower matching for different airflow and static pressure requirements. We evaluate the blower performance curve, motor speed and torque requirements, and driver configuration to develop a suitable solution. Actual performance is verified through application-specific testing.

3. Can the external driver be installed separately from the motor?

Yes. TACICON's external driver architecture allows the driver board to be installed separately from the ECM motor. This provides greater flexibility in component placement, thermal management and service access. Installation must consider wiring, electrical protection, cooling and available space.

4. Can TACICON provide a complete blower assembly?

Yes. TACICON can provide matched ECM motor, impeller, blower housing and external driver solutions for compact air handlers. Blower configurations can be customized according to airflow, static pressure, mechanical dimensions and mounting requirements.

5. Can TACICON support PSC-to-ECM upgrades?

Yes. TACICON supports PSC-to-ECM conversion projects for compatible compact air handler applications. We evaluate the existing PSC motor, blower performance, mounting dimensions, electrical requirements and control interfaces to determine a suitable ECM motor and external driver solution.

6. What information is needed for an OEM motor replacement?

To evaluate an OEM motor replacement, please provide the existing motor model or nameplate, voltage, power rating, RPM, shaft dimensions, mounting details and control requirements. Airflow (CFM), external static pressure (ESP), blower specifications and equipment drawings are also helpful for accurate motor and driver matching.

LET’S BUILD A SMARTER HVAC SOLUTION TOGETHER

Have an HVAC Motor or Control Project?

Send us your application requirements, motor specifications, drawings or control requirements.
