HVAC APPLICATIONS

Heat Pump & Furnace

ECM Motor, Blower & Control Solutions

Internal-rotor ECM motor solutions engineered for heat pump and furnace blower applications — from custom motor development and blower matching to external driver and OEM replacement solutions.

Heating & Cooling AirflowHeat Pump · Furnace

Variable-Speed BlowerAirflow Across Operating Modes

ECM Blower SolutionMotor · Blower · External Driver

HVAC Control IntegrationThermostat · Motor Control

Why ECM for Heat Pump & Furnace Blowers

Heat pump and furnace systems operate under different heating, cooling and fan-only conditions, which can require different blower speeds and airflow levels. A fixed-speed motor provides limited flexibility when the HVAC system needs to adapt airflow across these operating modes.

ECM technology provides more flexible blower-speed control while improving motor efficiency compared with conventional PSC motors. For OEM and replacement applications, the motor can be matched to the blower, RPM, torque and control requirements of the HVAC system rather than relying on a single fixed-speed operating point.

Higher Motor Efficiency

Higher motor efficiency than conventional PSC motors, helping reduce blower power consumption across HVAC operating modes.

Variable-Speed Airflow

Motor speed can be configured for heating, cooling and fan-only modes according to system airflow requirements.

Flexible HVAC Control

Supports multiple control options including 3-Speed, 0–10V, PWM and Modbus, depending on driver configuration.

Blower Performance Matching

ECM motor performance can be matched around the required blower, RPM, torque and equipment operating point.

ECM Blower Control Across Operating Modes

Heat pump and furnace systems operate under different conditions, which require different airflow levels and blower speeds. The ECM motor can be configured for heating, cooling, fan-only and custom airflow settings according to the HVAC control strategy, helping to maintain stable airflow, improve system efficiency and enhance indoor comfort.

Heating Mode

Configured Airflow for Heat Distribution

The ECM blower runs at the configured heating speed to move conditioned air through the furnace or indoor heat exchanger and duct system. Motor RPM can be matched to the required blower performance and heating airflow of the equipment.

Configured heating speed
RPM & torque matching
Application-specific airflow

Cooling Mode

Blower Speed for Cooling Demand

During cooling operation, the blower can operate at a different configured speed according to the cooling airflow requirement. This allows the same ECM blower system to support different operating points between heating and cooling modes.

Independent cooling speed
Different heating / cooling RPM
Matched to blower operating point

Fan Only Mode

Continuous Air Circulation

For fan-only or continuous circulation operation, the ECM motor can run at a lower blower speed when required by the HVAC system, providing continuous air movement without using the same speed setting as heating or cooling.

Low / medium speed operation
Continuous circulation
Separate fan-mode setting

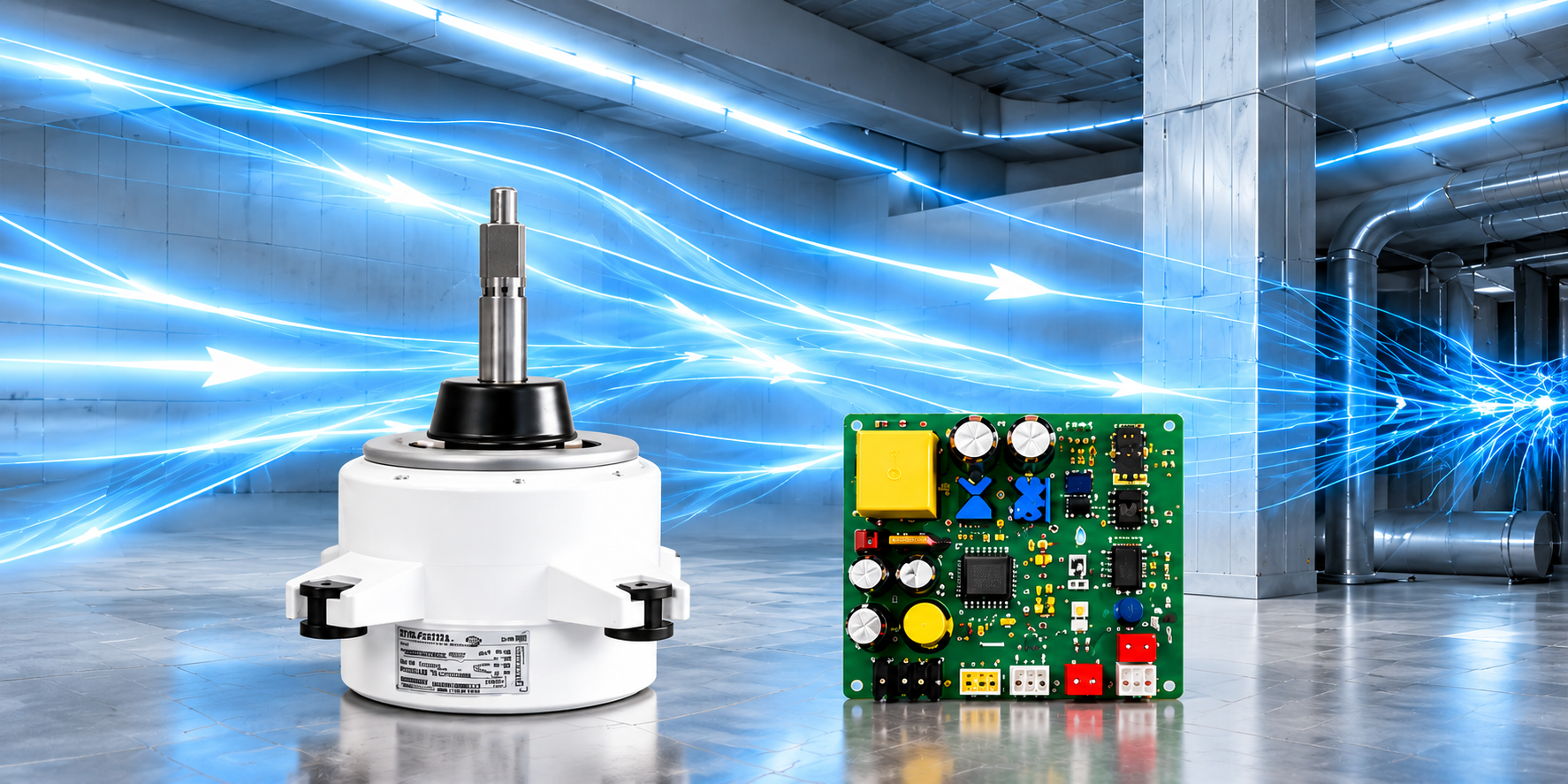

Airflow Adjustment

Flexible Speed Configuration

Blower speed can be configured around the airflow requirements and control strategy of each HVAC platform. The external driver and firmware provide flexibility for OEM-specific speed settings and control interfaces.

Multiple speed settings
3-Speed / 0–10V / PWM control
Modbus available
Application-specific settings

Example of Blower Speed Profile

Different operating modes can be set with different motor speeds according to system requirements.

Blower Speed(RPM)

Heating ModeConfigured Speed ACooling ModeConfigured Speed BFan Only ModeConfigured Speed CAirflow AdjustmentMulti-Speed Setting

Control Signal Options

Support multiple control methods to meet different system requirements.

3-SpeedLow / Medium / High speed setting

0–10VAnalog control (variable speed)

PWMDigital control

ModbusBuilding automation (optional)

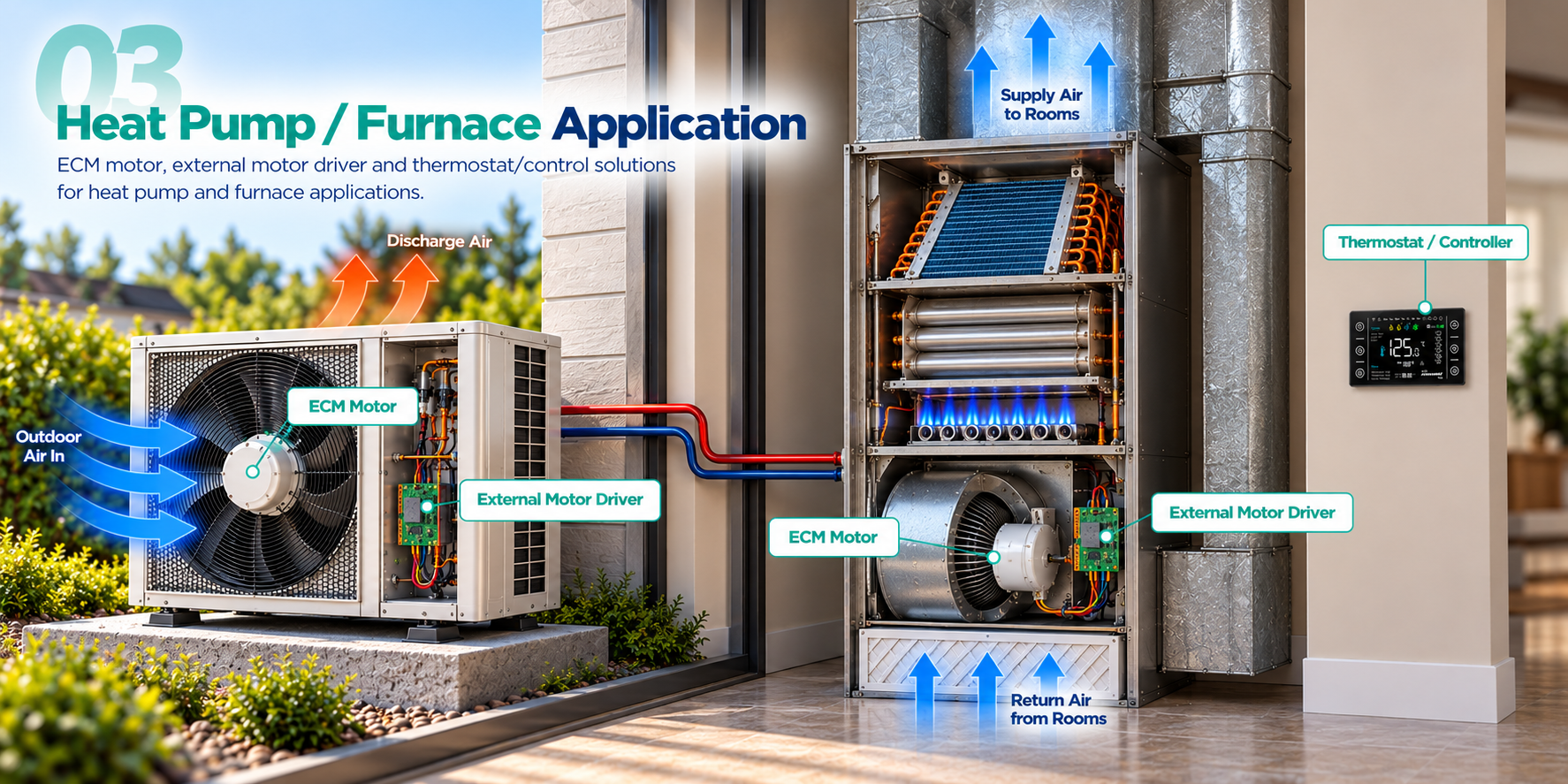

Heat pump and furnace application showing outdoor and indoor ECM motors, external motor drivers, thermostat control, and supply and return airflow

Why an External Driver?

Separating the motor and driver gives HVAC OEMs greater flexibility in system design, thermal management, maintenance and motor selection.

More Flexibility
for HVAC Innovation

Faster Customization

Adapt driver hardware, firmware and control interfaces without necessarily redesigning the motor.

Fewer Motor Variants

Support different HVAC control requirements with a common motor platform and matched driver options.

Easier Service & Replacement

Separate motor and driver components allow more flexible maintenance and replacement strategies.

Better Thermal Separation

Position the driver away from motor heat and vibration for improved thermal management and system integration.

TECHNOLOGY SPOTLIGHT

Sensorless Control. External Driver Flexibility.

Our sensorless motor driver solutions support Hall-sensor-free BLDC motor operation, with motor-specific tuning and configurable control options.

No Hall Sensors Required

Sensorless commutation eliminates the need for Hall sensor feedback from the motor.

Motor-Specific Tuning

Driver parameters and firmware can be optimized for motor characteristics and application requirements.

Control Interface Options

Depending on the driver model, available interfaces include 3-speed, 0–10V and RS485 control.

TACICON sensorless external motor driver board

One Motor Platform.
More Possibilities.

TACICON brings together ECM motors, impellers, blower assemblies, external drivers and HVAC controls to support OEM system integration.

Explore Motor & Driver Solutions

Motor & Air System

Drive & Control

ECM Motor

10–750W (1 HP)Custom Motor Configurations

Impeller / Blower

Centrifugal · Axial · Cross-FlowAirflow & Static Pressure Matching

M5 ECM motor driver board, front view with a large capacitor and green screw terminals

External Motor Driver

3 Speed · 0–10V · Modbus · PWMCustom Hardware & Firmware

Thermostat / Control

Temperature · Fan · ValveCompressor Control

A Matched HVAC Motor & Control Solution

Engineered to Match Your Application

From Application Requirements
to Engineering Solutions

We work with heat pump and furnace OEMs to match the ECM motor, blower, external driver and control configuration to specific equipment requirements and operating modes.

Custom Engineering Process

Application Requirements
Equipment Type · Airflow · ESP · Operating Modes
Motor & Blower Engineering
Blower · RPM · Torque · Power · Shaft · Mounting
Driver & Control Development
3-Speed · 0–10V · PWM · Modbus
Firmware & Motor Tuning
Motor Parameters · Speed Settings · Control Logic
Prototype & Validation
Motor Performance · Blower Performance · Installation Fit
Mass Production
Approved Configuration

Technical FAQ

What power range do your ECM motors support for heat pump and furnace applications?

Our ECM motors cover approximately 10–750W (up to ≈1 HP) for residential HVAC blower applications. Motor selection is based on the required blower RPM, torque, airflow target and equipment operating point rather than wattage alone.

Can one ECM blower operate at different speeds for heating and cooling?

Yes. Different blower speeds can be configured for heating, cooling and fan-only operation according to the HVAC equipment control strategy. The actual RPM for each mode depends on the required airflow and blower operating point.

What control signals are available for the ECM motor?

Depending on the external driver configuration, we can support 3-Speed, 0–10V, PWM and Modbus control. The control interface and speed settings can be customized for the HVAC platform.

Can you match your ECM motor to our existing blower wheel?

Yes. We can evaluate the existing blower or impeller together with the required RPM, torque, shaft dimensions, mounting structure and operating conditions to develop a matched ECM motor solution.

What information do you need to select the correct motor?

Typical information includes the existing motor model/nameplate or drawing, blower dimensions, RPM or speed range, airflow and ESP requirements, voltage, control signal, shaft and mounting dimensions, and operating-mode requirements.

Can your ECM motor replace an existing PSC furnace or heat pump blower motor?

Yes, for compatible applications. Replacement development requires matching the existing shaft, mounting, rotation, RPM, torque, voltage, power and blower requirements. Each application is evaluated individually before motor selection.

Why do you use an external driver instead of integrating the electronics into the motor?

Our internal-rotor ECM motor + external driver architecture separates the motor from the control electronics, providing greater flexibility for control-interface configuration, firmware development, motor tuning and application-specific HVAC integration.

Can you provide the complete motor, blower and control solution?

Yes. TACICON can support ECM motor + blower / impeller + external driver + control configuration as an integrated engineering solution, developed around the airflow, mechanical and control requirements of the HVAC equipment.
