HVAC APPLICATIONS

Air Distribution & Ventilation

ECM Motor, Blower & Control Solutions

ECM motor, blower and control solutions engineered for commercial air distribution and ventilation equipment.

Variable-Speed AirflowEfficient airflow control

Motor & Blower MatchingMatched to airflow and static pressure

Flexible Control0–10V · PWM · Multi-Speed · RS485

WHY ECM FOR AIR DISTRIBUTION & VENTILATION

Built for Long Operating Hours and Variable Airflow Demand

Commercial air distribution and ventilation systems often operate for extended periods while airflow demand changes with occupancy, operating schedules and indoor conditions.

ECM technology enables variable-speed airflow control and efficient part-load operation. Combined with an external motor driver, motor speed and control parameters can be configured around the airflow and operating requirements of different HVAC equipment.

Variable-Speed Airflow

Adjust motor speed to support different ventilation demands, from reduced airflow during low-demand periods to higher airflow when increased ventilation is required.

Part-Load Efficiency

Efficient motor operation and variable-speed control help reduce unnecessary energy consumption, particularly in air distribution and ventilation equipment that operates for extended hours.

Operating Flexibility

Configure motor speed and operating parameters around changing system demand, equipment requirements and operating schedules.

Flexible Control

Support 0–10V, 3-speed and RS485 control options, with configurable motor speed and operating parameters for different air distribution and ventilation equipment.

AIRFLOW CONTROL

Variable Airflow for Changing System Demand

Motor speed and airflow can be adjusted according to system demand, operating schedules and control signals.

LOW AIRFLOW DEMAND

Reduced airflow during low-load periods

Air Distribution & Ventilation airflow at low airflow demand speed
Motor Speed
Reduced
Airflow
Reduced
Power Demand
Reduced

DESIGN AIRFLOW

Normal operation at the required system operating point

Air Distribution & Ventilation airflow at design airflow speed
Motor Speed
Matched
Airflow
Design CFM
Operating Point
Matched

HIGH AIRFLOW DEMAND

Increased airflow when higher ventilation or system demand is required

Air Distribution & Ventilation airflow at high airflow demand speed
Motor Speed
Increased
Airflow
Increased
System Demand
High

Blower & Impeller Matching

Match the motor and impeller to airflow, static pressure and installation requirements.

Engineered
for HVAC

01

Forward-Curved Centrifugal Impeller

High airflow with compact size. Widely used in ventilation and air handling applications.

Black forward-curved centrifugal blower wheel
Single Wheel

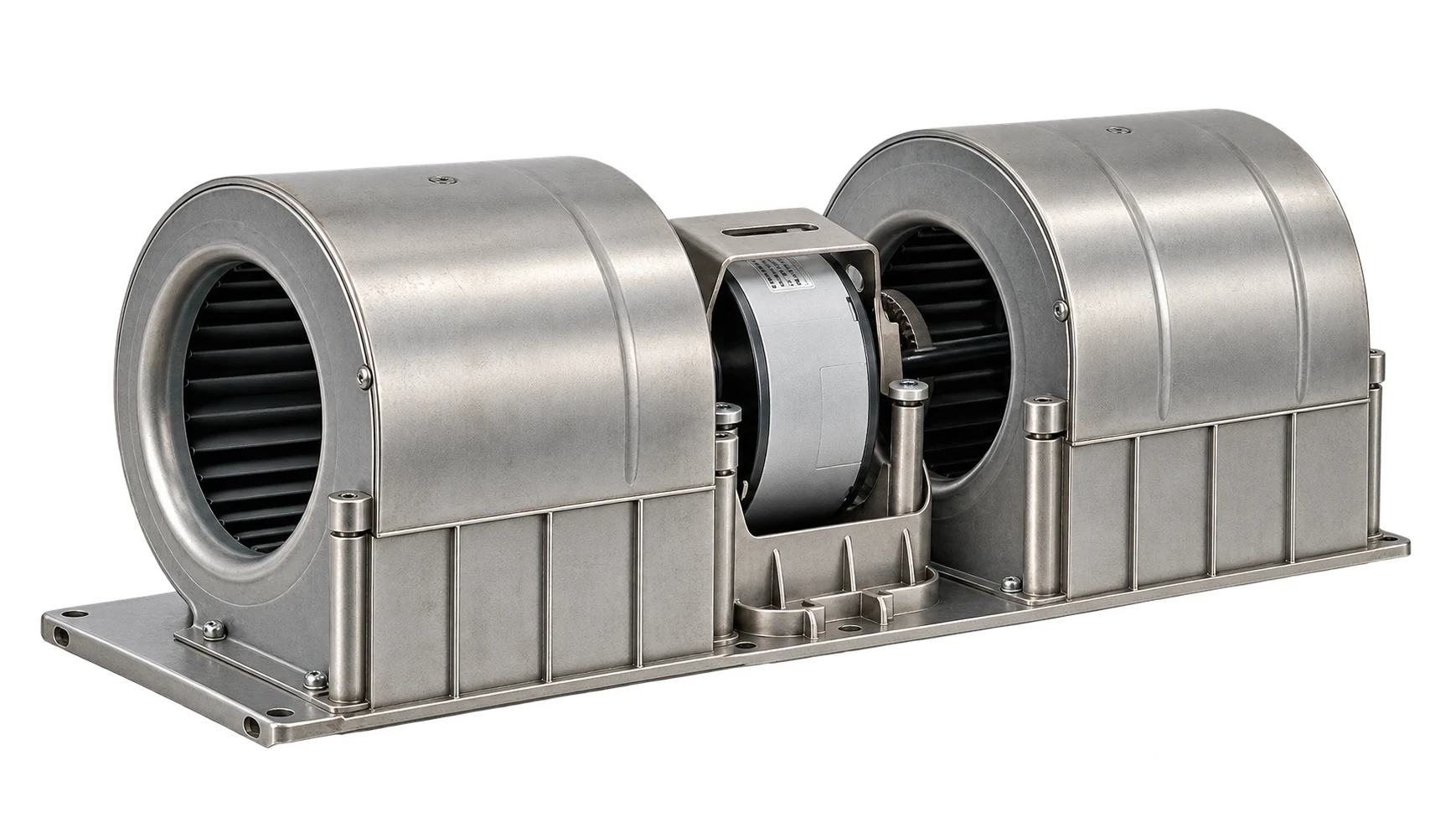

Double-wheel forward-curved centrifugal blower assembly
Double Wheel
Typical Applications

Fresh air fan, air purifier, dehumidifier, fan coil unit (FCU)

02

Backward-Curved Centrifugal Impeller

Higher efficiency and static pressure. Ideal for demanding HVAC applications.

Black backward-curved centrifugal impeller
Typical Applications

Air handling unit (AHU), ERV/HRV, filtration systems, dehumidifier, industrial ventilation

03

Cross-Flow / Tangential Fan

Uniform airflow and low noise. Suitable for slim and long air outlets.

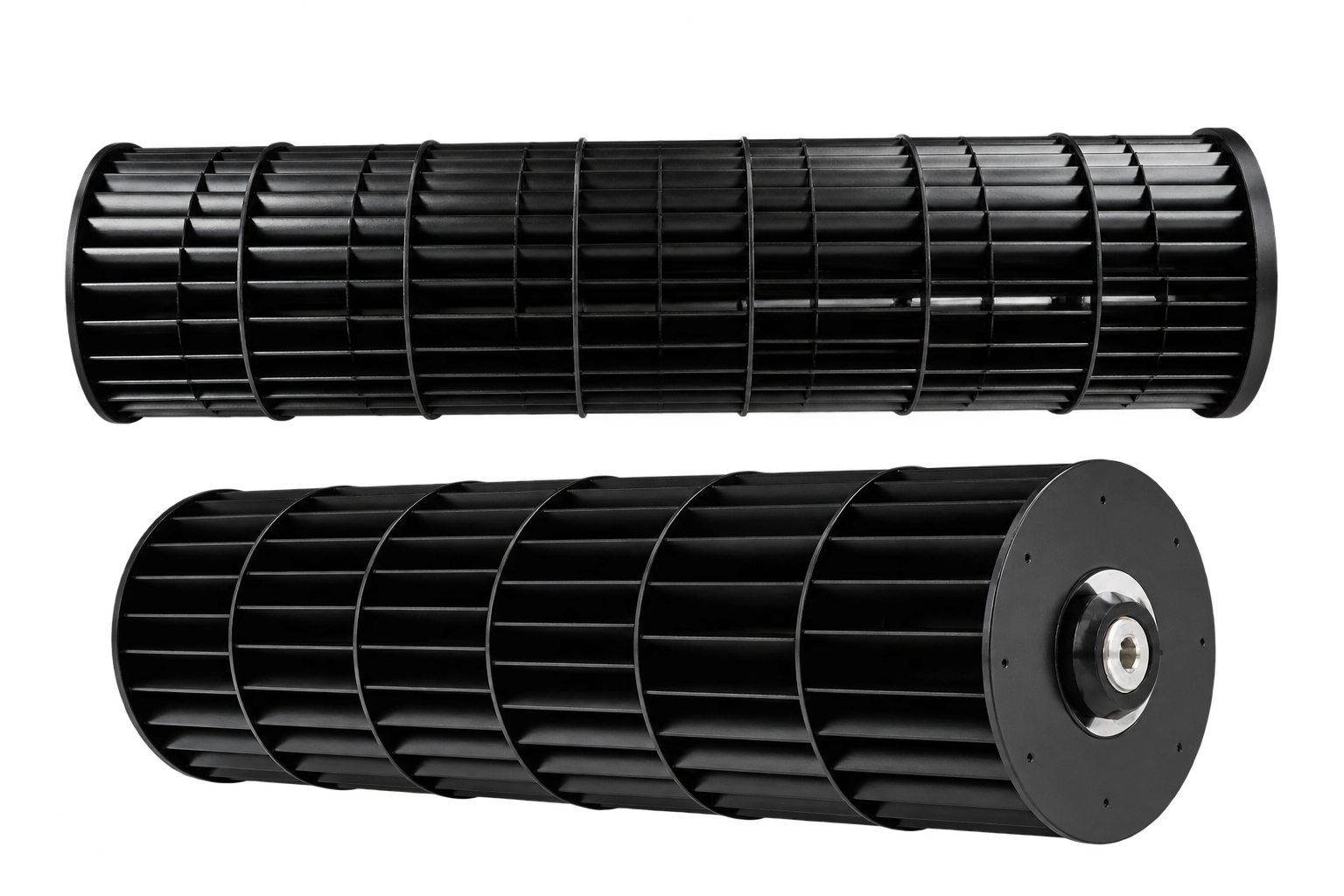

Two black cross-flow tangential fan impellers
Typical Applications

Air conditioner indoor unit, fan coil, wall-mounted unit, air curtain

04

Axial Fan

Large airflow with compact structure. Suitable for outdoor and high-air-volume applications.

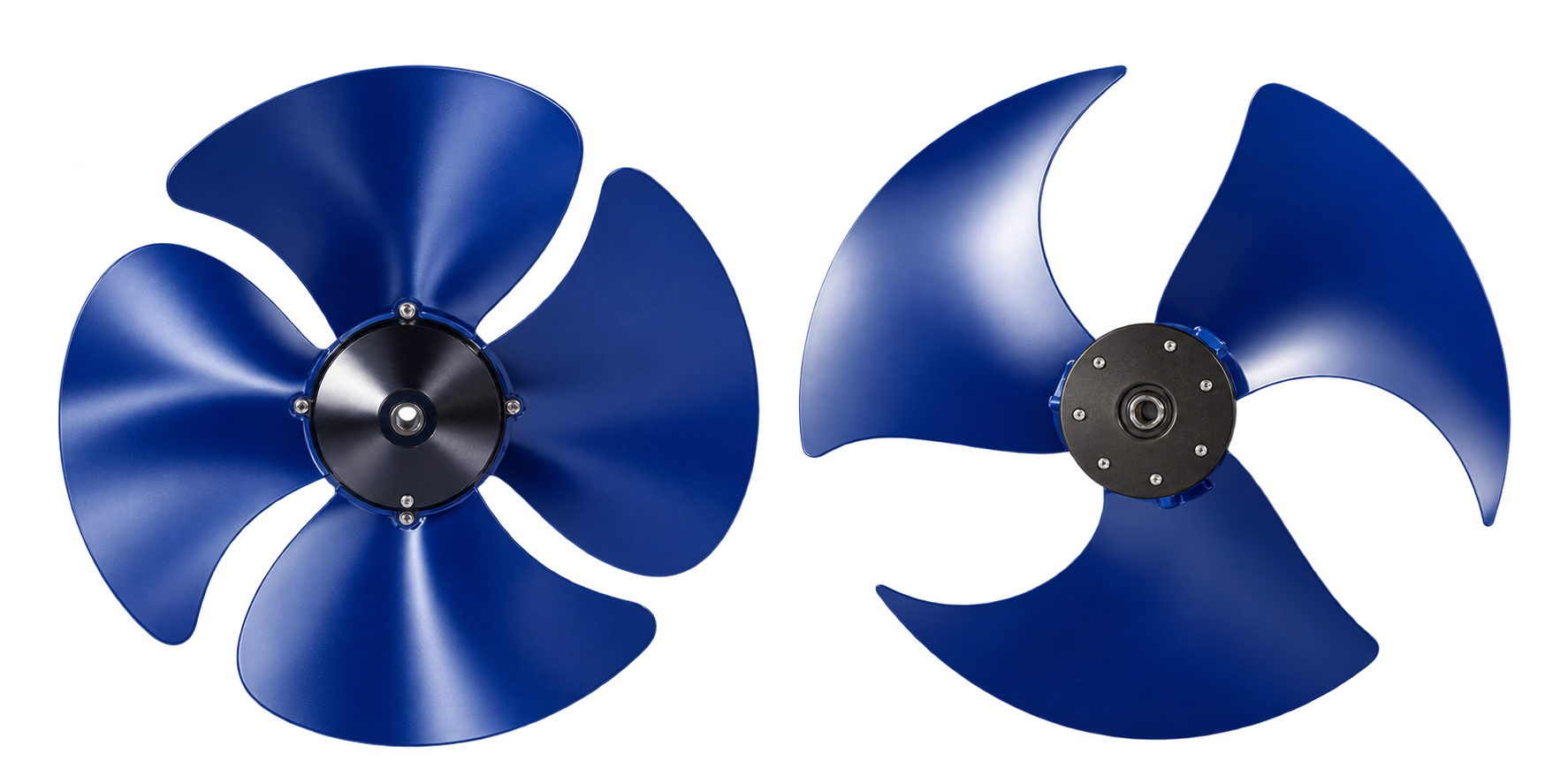

Two blue axial fan impellers
Typical Applications

Outdoor unit, heat pump, condenser, ventilation

From ECM Motor to Complete Blower Assembly

TACICON can match the ECM motor, impeller and blower housing around your airflow and installation requirements.

Discuss Your Project
White single-shaft ECM motor with cable and connectorECM Motor
+
Black forward-curved centrifugal impeller wheelImpeller
+

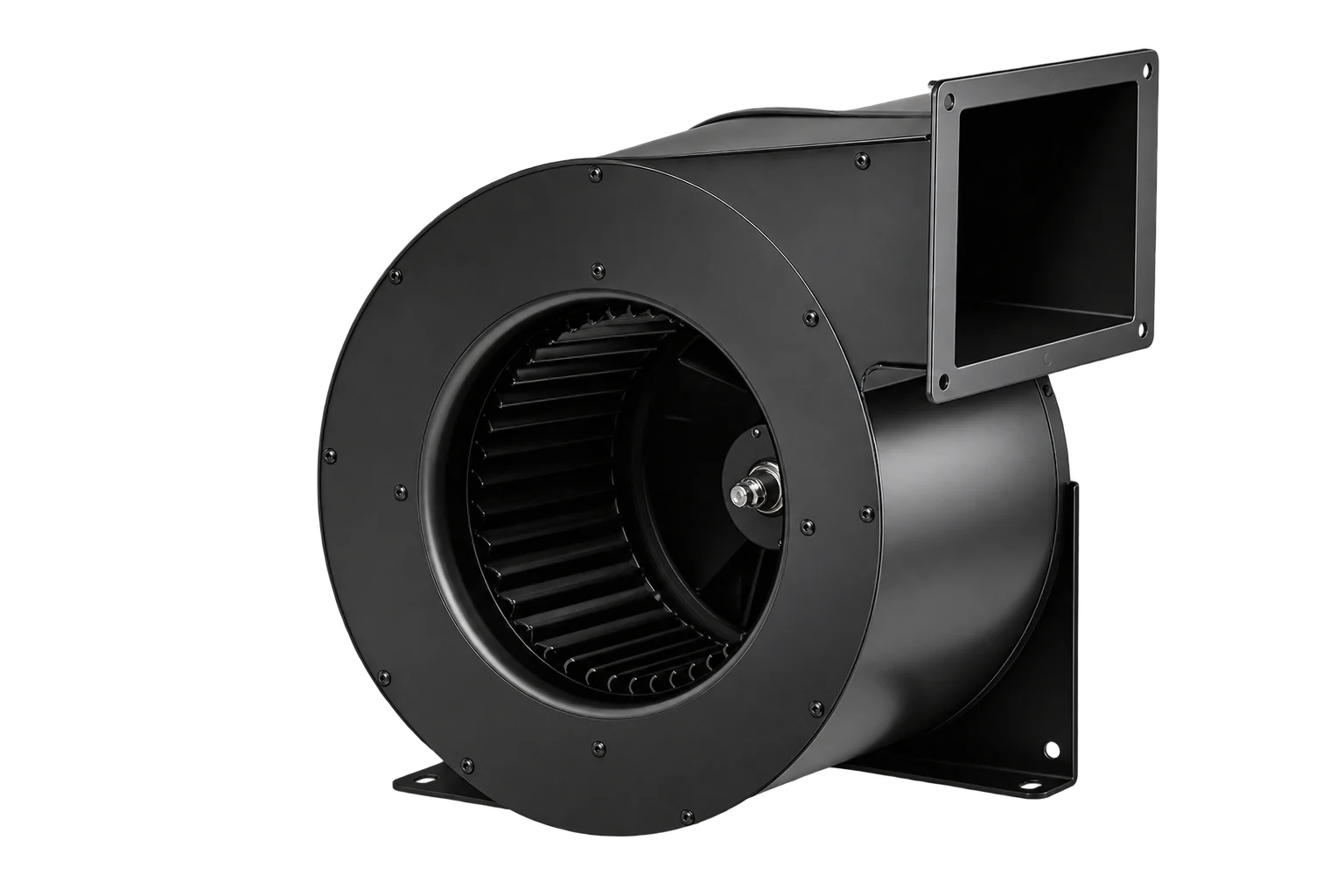

Black centrifugal blower housing with a rectangular outletBlower Housing
Complete black centrifugal blower assemblyComplete Blower Assembly
04

Why an External Driver?

Separating the motor and driver gives HVAC OEMs greater flexibility in system design, thermal management, maintenance and motor selection.

More Flexibility
for HVAC Innovation

Faster Customization

Adapt driver hardware, firmware and control interfaces without necessarily redesigning the motor.

Fewer Motor Variants

Support different HVAC control requirements with a common motor platform and matched driver options.

Easier Service & Replacement

Separate motor and driver components allow more flexible maintenance and replacement strategies.

Better Thermal Separation

Position the driver away from motor heat and vibration for improved thermal management and system integration.

TECHNOLOGY SPOTLIGHT

Sensorless Control. External Driver Flexibility.

Our sensorless motor driver solutions support Hall-sensor-free BLDC motor operation, with motor-specific tuning and configurable control options.

No Hall Sensors Required

Sensorless commutation eliminates the need for Hall sensor feedback from the motor.

Motor-Specific Tuning

Driver parameters and firmware can be optimized for motor characteristics and application requirements.

Control Interface Options

Depending on the driver model, available interfaces include 3-speed, 0–10V and RS485 control.

TACICON sensorless external motor driver board

One Motor Platform.
More Possibilities.

TACICON brings together ECM motors, impellers, blower assemblies, external drivers and HVAC controls to support OEM system integration.

Explore Motor & Driver Solutions
Motor & Air System
Drive & Control
TACICON ECM motor

ECM Motor

10–750W (1 HP)Custom Motor Configurations

Centrifugal blower impeller

Impeller / Blower

Centrifugal · Axial · Cross-FlowAirflow & Static Pressure Matching

M5 ECM motor driver board, front view with a large capacitor and green screw terminals

External Motor Driver

3 Speed · 0–10V · Modbus · PWMCustom Hardware & Firmware

HVAC touchscreen thermostat

Thermostat / Control

Temperature · Fan · ValveCompressor Control

A Matched HVAC Motor & Control Solution

Engineered to Match Your Application

05

Engineering Process

APPLICATION ENGINEERING

From Airflow Requirements
to a Matched Motor & Blower Solution

We match the motor, blower and control configuration around airflow, external static pressure and the required operating point.

Custom Engineering Process
  1. Airflow Requirements

    CFM · ESP · Operating Point

  2. Blower Matching

    Impeller · Diameter · Housing

  3. Motor Matching

    Power · RPM · Torque

  4. Control Strategy

    0–10V · PWM · Multi-Speed · RS485

  5. Mechanical Integration

    Shaft · Mounting · Clearance

  6. Prototype & Validation

    Application Testing · Validation

Air Distribution & Ventilation Equipment We Support

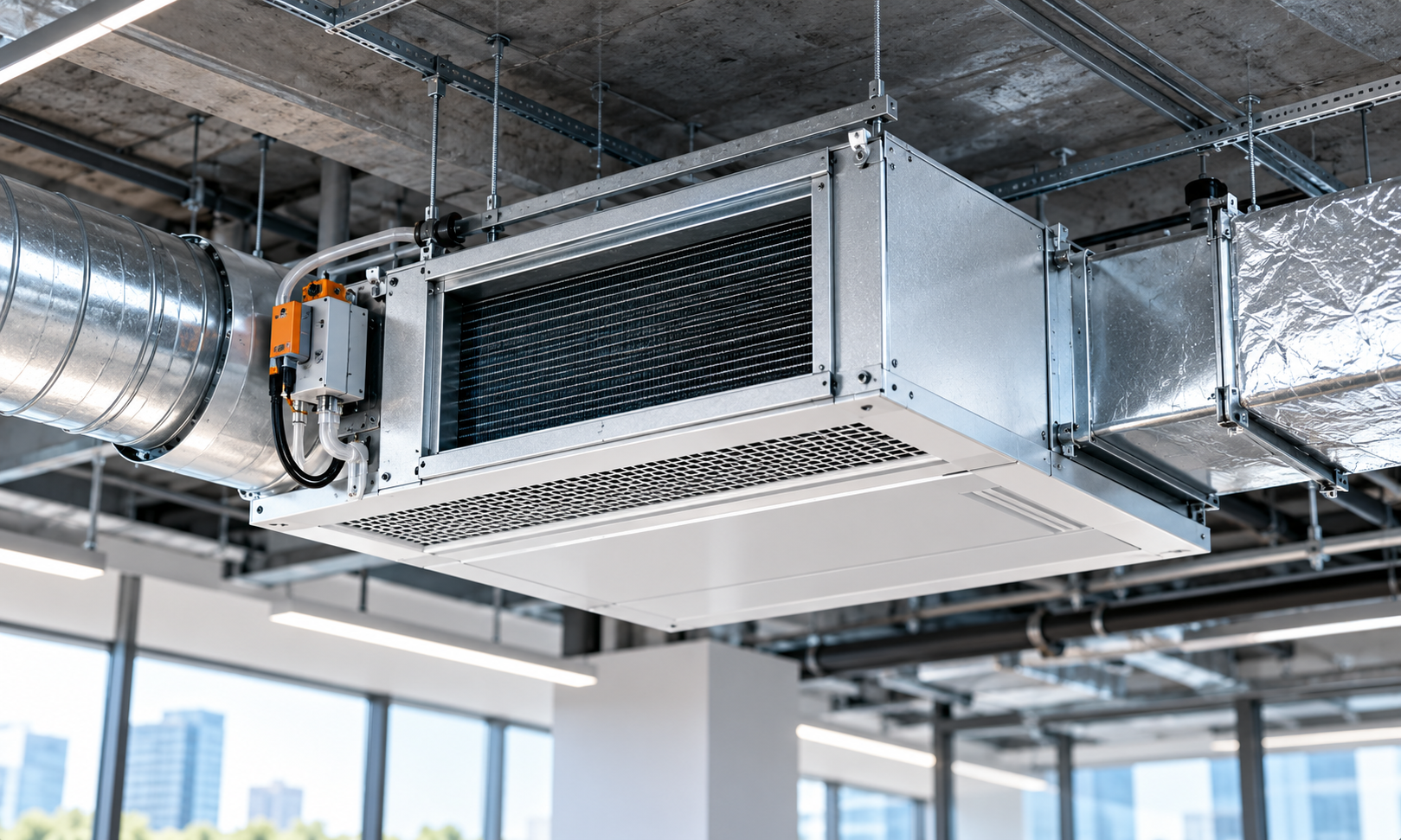

VAV & Air Distribution

VAV & Air Distribution

  • VAV Terminal Units
  • Fan-Powered VAV Boxes
  • Parallel Fan-Powered Terminals
  • Series Fan-Powered Terminals

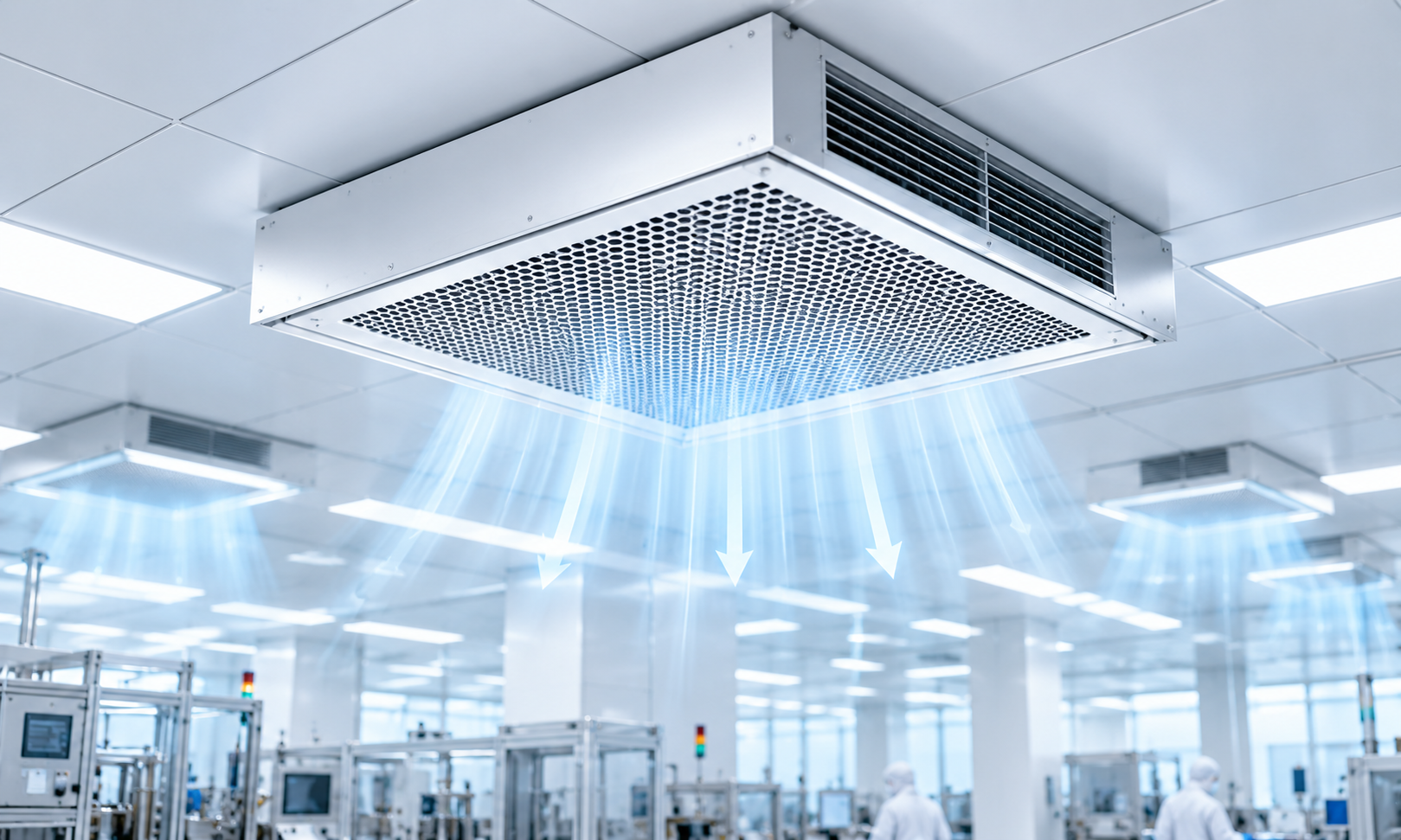

Cleanroom FFUs

Cleanroom FFUs

  • Ceiling-Mounted FFUs
  • HEPA FFUs
  • ULPA FFUs
  • EC / ECM FFUs

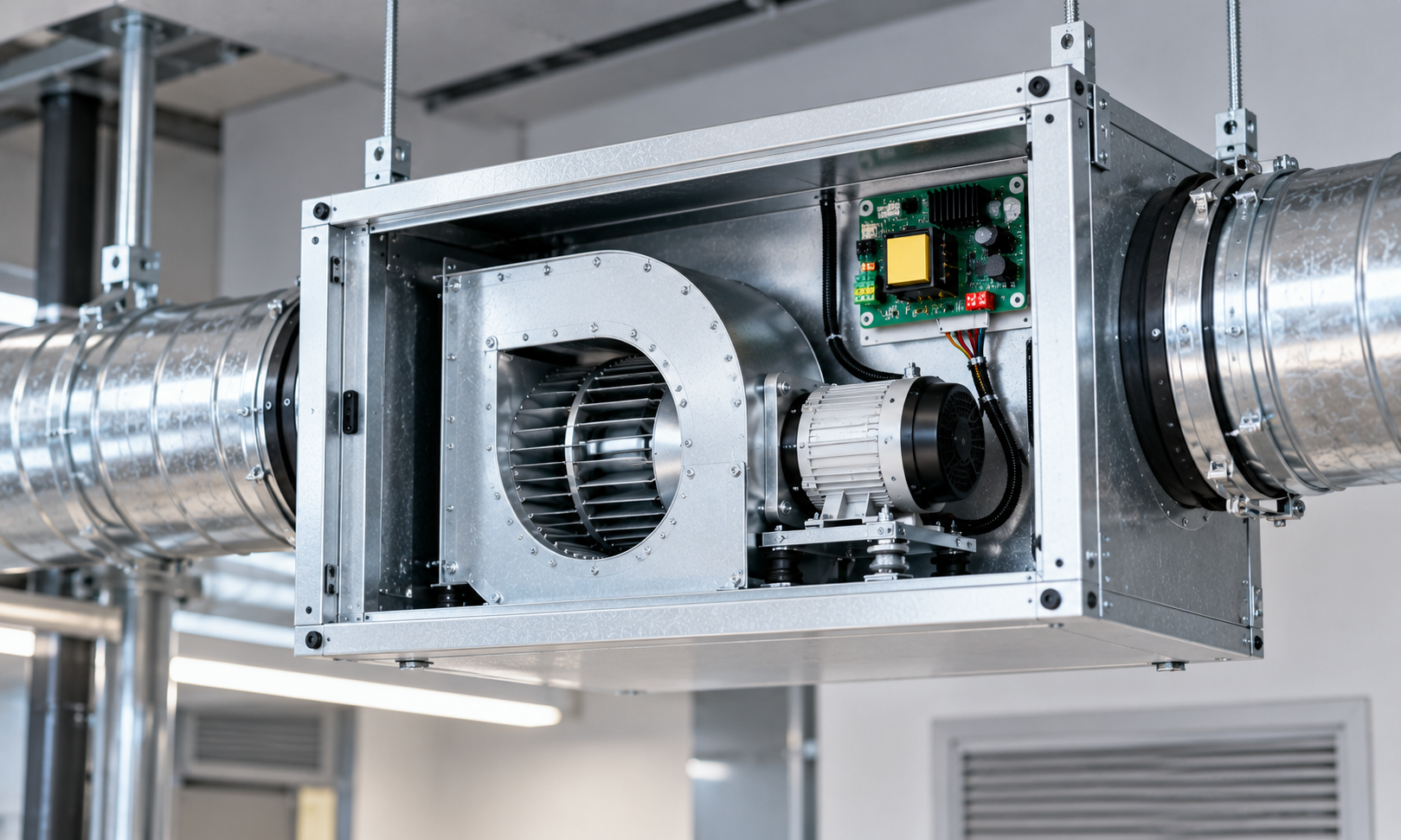

Cabinet & Utility Fans

Cabinet & Utility Fans

  • Cabinet Fans
  • Utility Fans
  • Box Fans
  • Plenum Fans

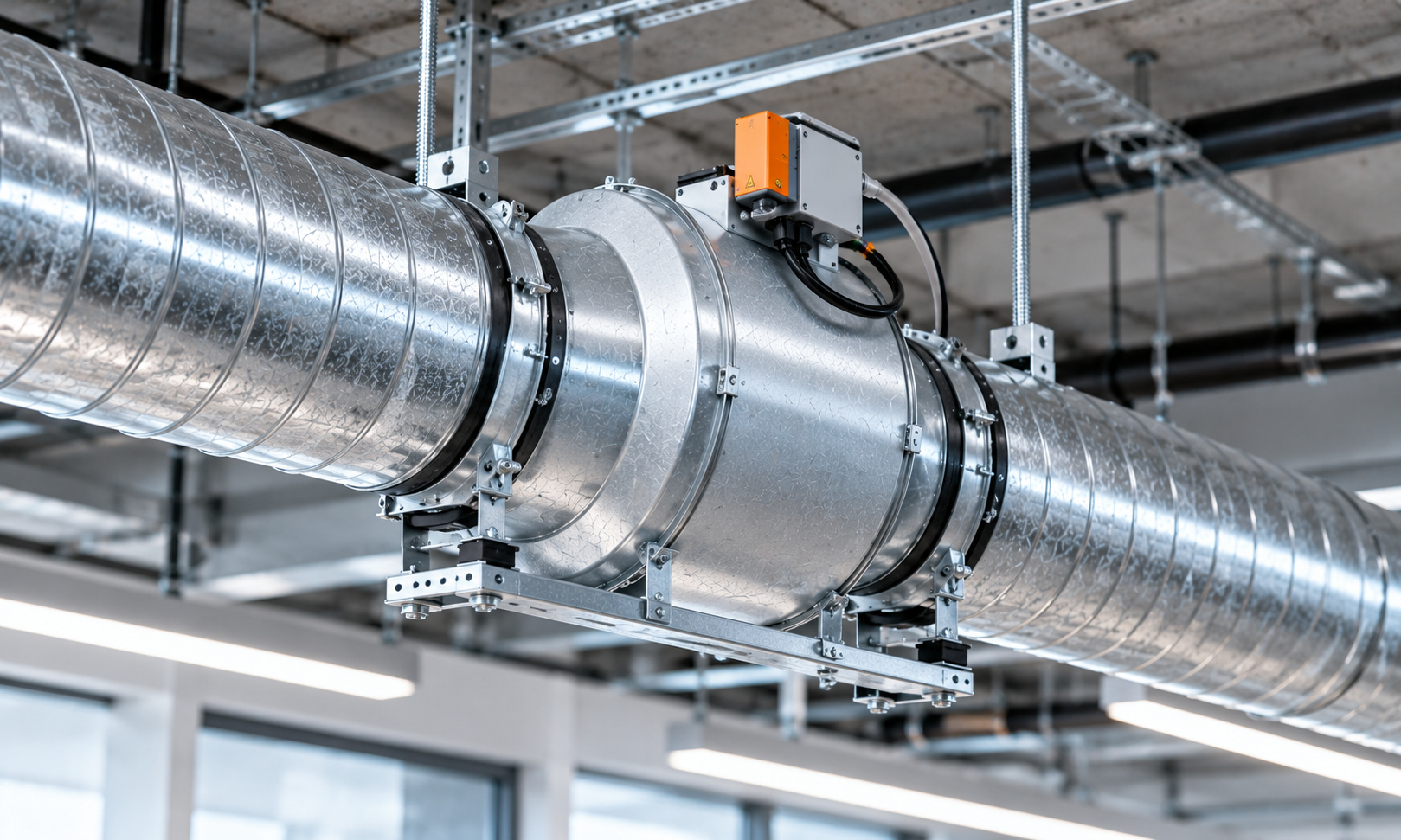

Inline Ventilation Fans

Inline Ventilation Fans

  • Inline Centrifugal Fans
  • Mixed-Flow Inline Fans
  • Duct Fans
  • Inline Exhaust Fans

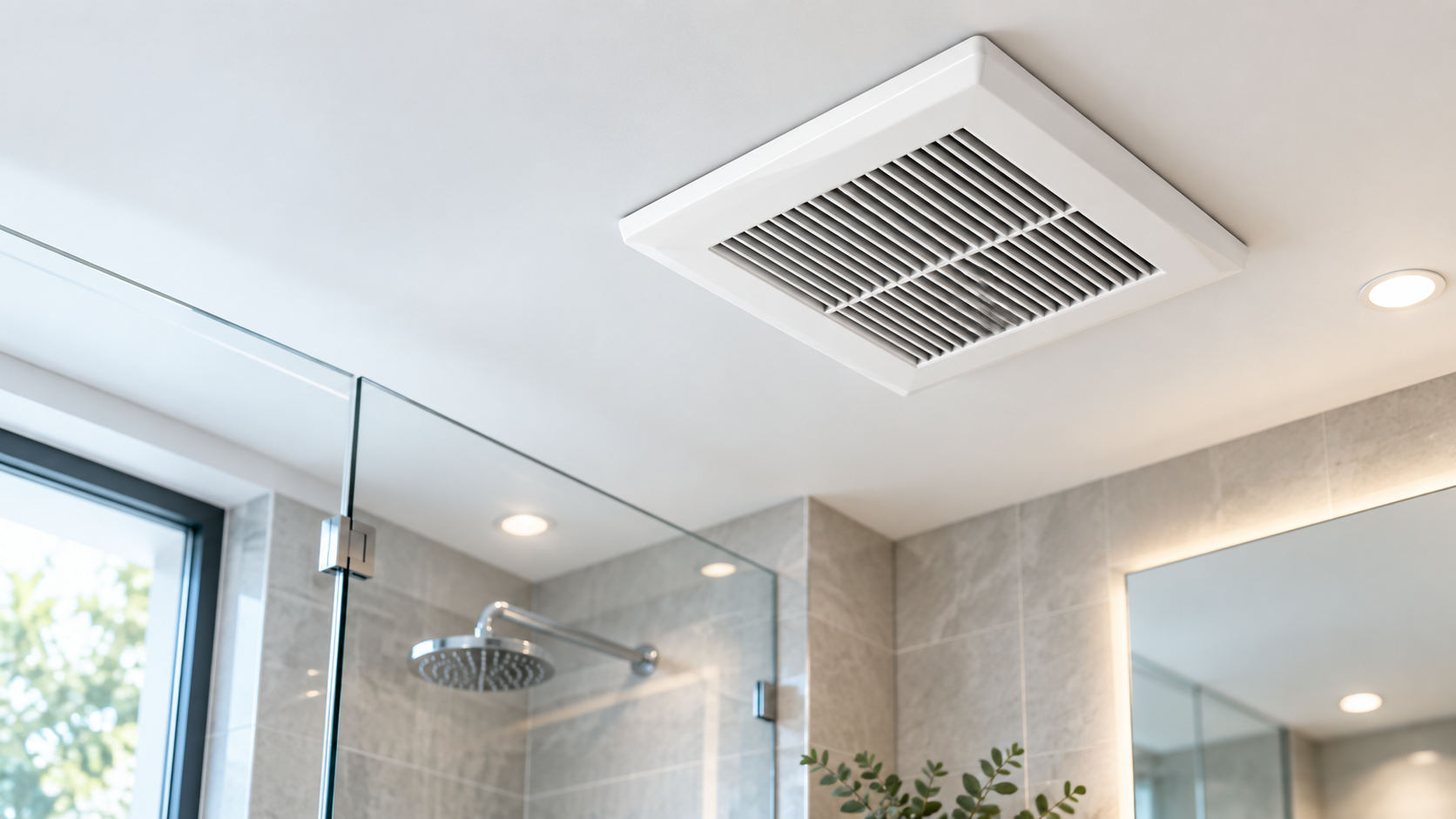

Ceiling Ventilation

Ceiling Ventilation

  • Bathroom Exhaust Fans
  • Ceiling Exhaust Fans
  • Ceiling Supply Fans
  • Ceiling-Mounted Ventilation Fans

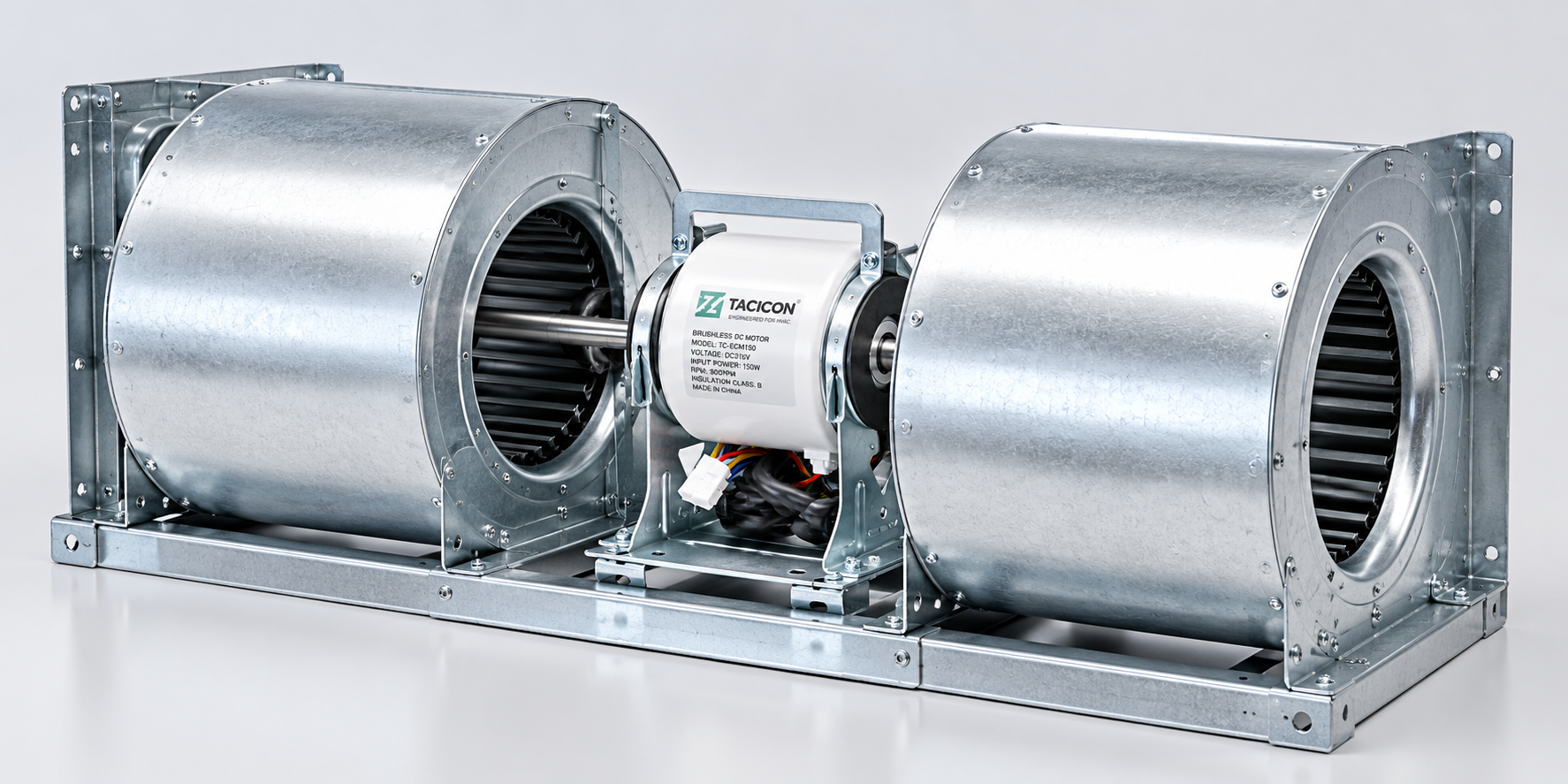

HVAC Blower Assemblies

HVAC Blower Assemblies

  • Forward-Curved Blowers
  • Backward-Curved Blowers
  • Double-Inlet Blowers
  • Tangential / Cross-Flow Blowers

Technical FAQ

01. What types of air distribution and ventilation equipment can use your ECM motors?

Our ECM motors can be applied to VAV-related equipment, cleanroom FFUs, cabinet and utility fans, inline ventilation fans, ceiling ventilation units and HVAC blower assemblies.

02. How do you select an ECM motor for a blower or fan?

We start with the required airflow (CFM), external static pressure (ESP) and operating point, then evaluate the blower or impeller, motor speed, torque and power requirements. Mechanical dimensions and control requirements are also considered before recommending a motor configuration.

03. Can you provide the ECM motor together with the impeller or complete blower assembly?

Yes. We can provide the ECM motor only, motor + impeller, or a complete blower assembly depending on the application. Available solutions include forward-curved, backward-curved, cross-flow/tangential and other fan or blower configurations.

04. What speed and control options are available?

Depending on the driver and application, we can support 0–10V, PWM, multi-speed and RS485 control. Driver hardware and firmware can also be configured around the required speed range, airflow demand and HVAC control strategy.

05. Can your ECM motor and external driver replace an existing HVAC motor?

Potentially, but replacement should not be based on motor power or frame size alone. We evaluate the existing motor’s voltage, power, RPM, rotation, shaft, mounting, blower load and control interface to determine whether an ECM motor and external driver configuration can be matched to the equipment.

06. What information do you need to recommend a motor and blower solution?

For an initial evaluation, send us the existing motor nameplate or model, voltage, power, RPM, shaft and mounting dimensions, blower or fan information, target airflow/ESP and control requirements. If available, equipment drawings and existing motor specifications help us evaluate the application more accurately.

TACICON ECM motor and green driver boards in front of rooftop HVAC equipment

LET’S BUILD A SMARTER HVAC SOLUTION TOGETHER

Have an HVAC Motor or Control Project?

Send us your application requirements, motor specifications, drawings or control requirements.
