HVAC ECM DRIVER BOARDS

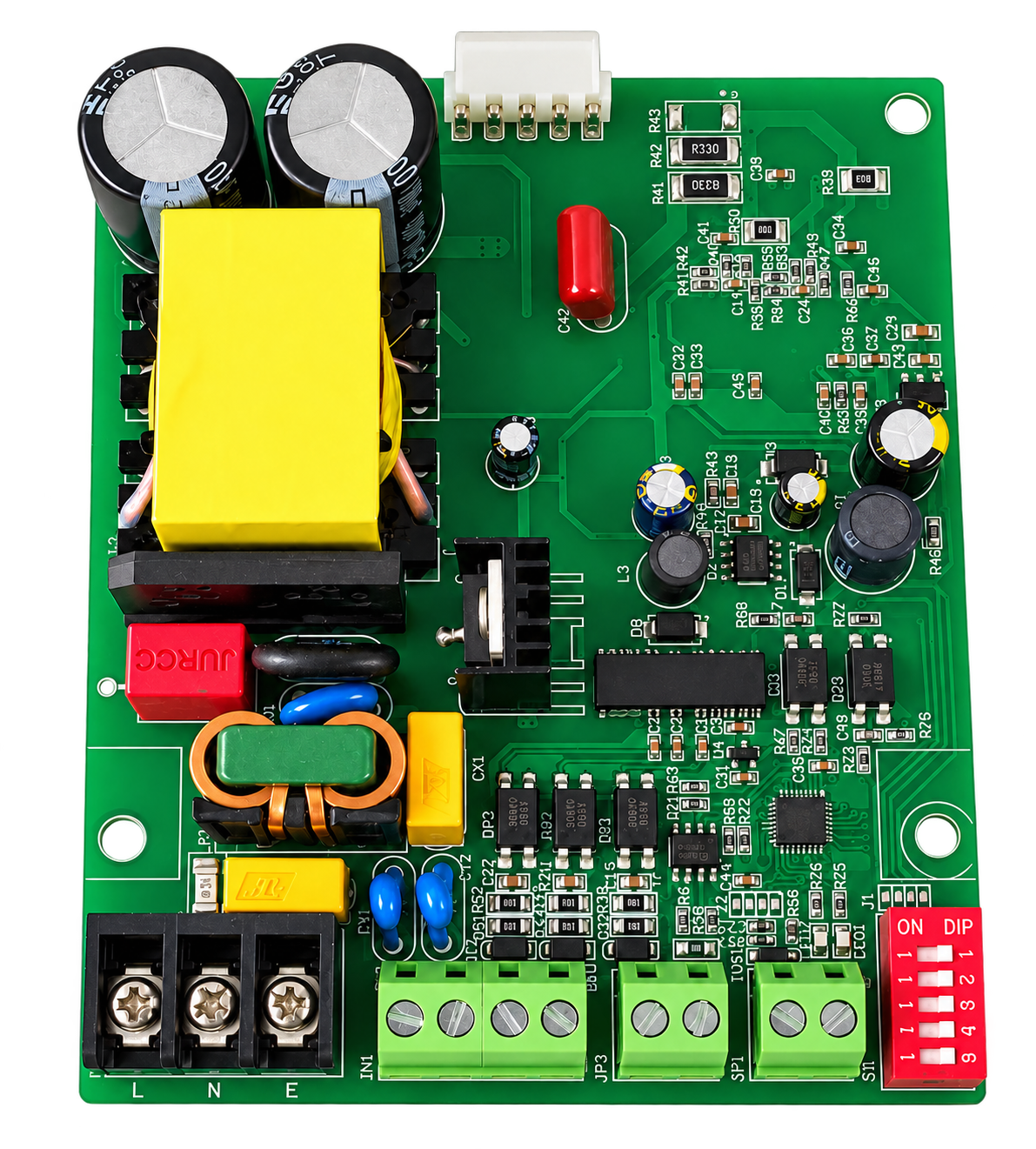

M10 Wide Voltage ECM Motor Driver Board
M10 Brushless DC Motor Fan Speed Controller is designed for FCU fan coil units and HVAC fan applications. Featuring a wide 100–270VAC input voltage range, sensorless BLDC motor control, and flexible speed control options, it supports efficient fan operation and integration with compatible ECM/BLDC motors. Ideal for OEM fan coil manufacturers seeking customizable motor and external driver solutions.
| Item | Specification |
|---|---|
| Model | M10 |
| Motor type / channels | Factory-adapted BLDC motor / single-motor drive |
| Motor feedback | Sensorless; no Hall sensor feedback |
| AC input | 100–270VAC, 50/60Hz |
| Rated input power | 200W |
| Analog control | 0–10V; default 1–10V maps to 400–1500rpm |
| Three-speed option | 12–100VAC/DC low-voltage option; match the ordered option |
| Communication | RS485 / Modbus RTU, 9600bit/s, 8N1; default address 1 |
| Command range | 0 / 300–1500rpm; actual speed depends on motor adaptation and load |

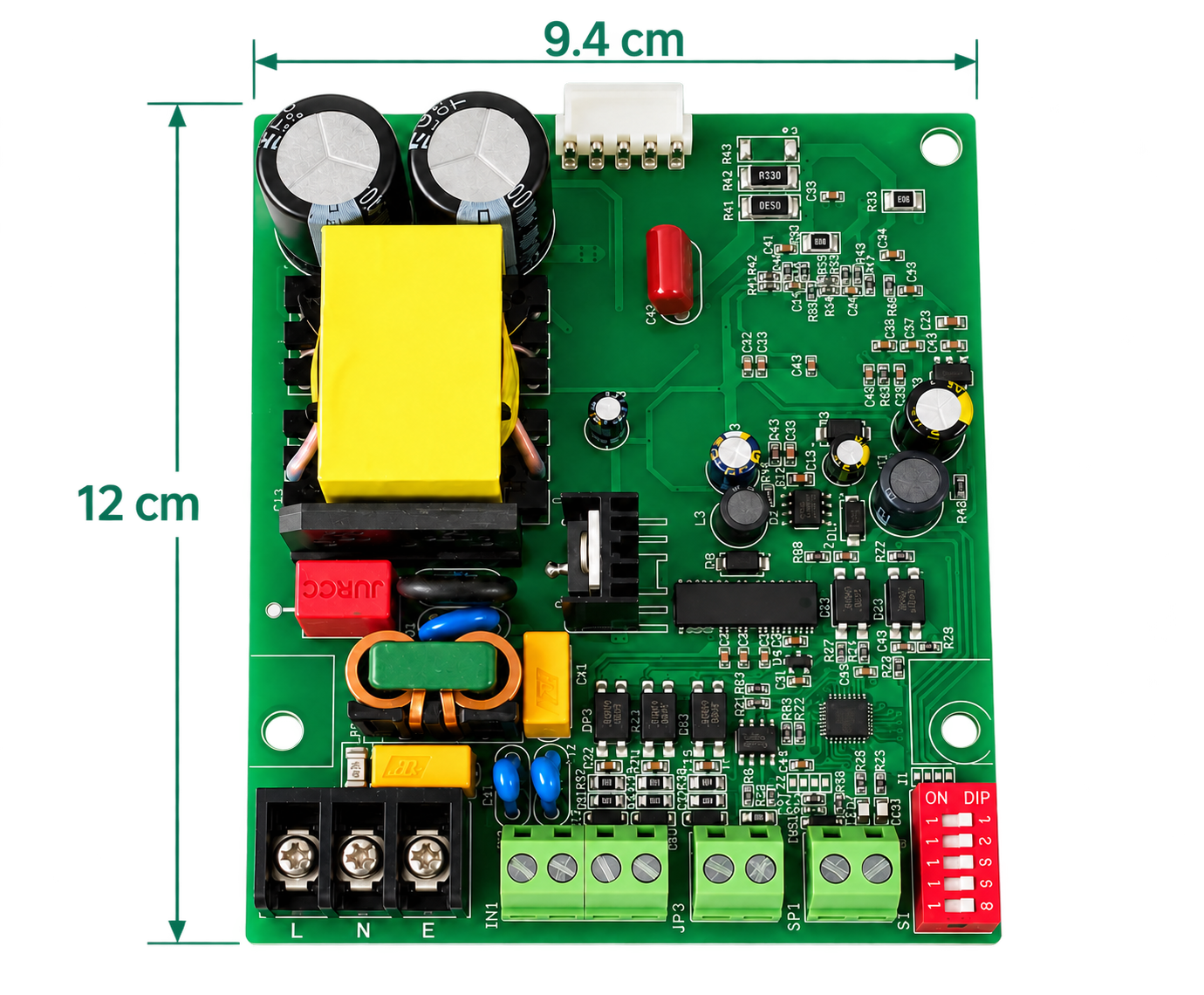

| Bare-board dimensions | 120 × 94 × 32mm |
| Enclosure body | 100 × 120 × 43mm, excluding mounting ears |
Wide-voltage input, 50/60Hz
Default 1–10V maps to 400–1500rpm
Optional 12–100VAC/DC configuration
RTU, 9600bit/s, 8N1
No Hall sensor feedback
Use only the interface and voltage option specified for the ordered configuration. Installation and wiring require qualified personnel.

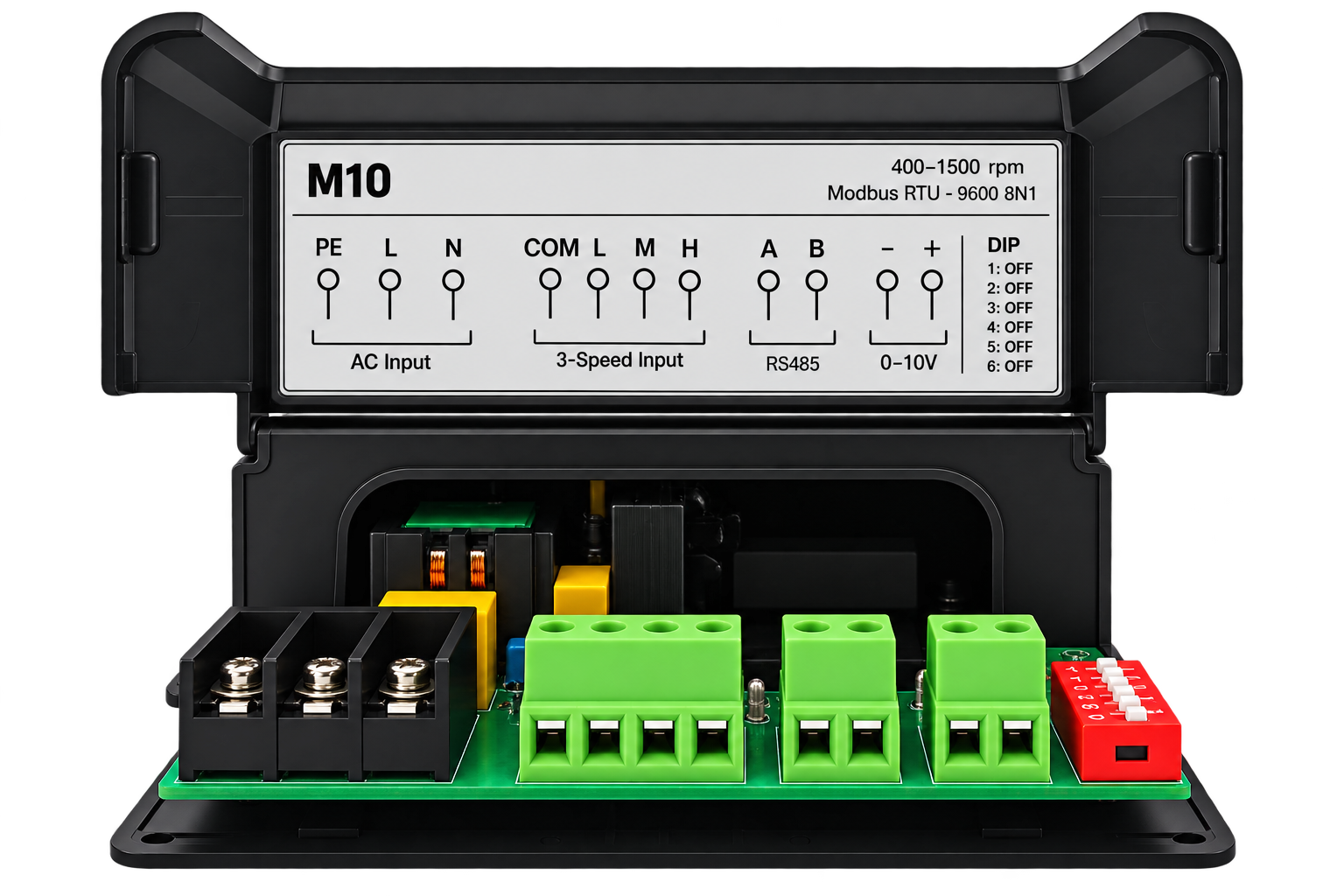

The M10 driver board is also available with a plastic enclosure for easier integration and installation in HVAC equipment.
The plastic enclosure provides a physical cover for the control board and its components.
Well-organized terminals and clear labels make wiring and installation more efficient.
A compact enclosure supports integration into different HVAC equipment layouts.
Supports customized configurations for fan coil unit (FCU) applications.
Send us your motor information
to get initial recommendations.

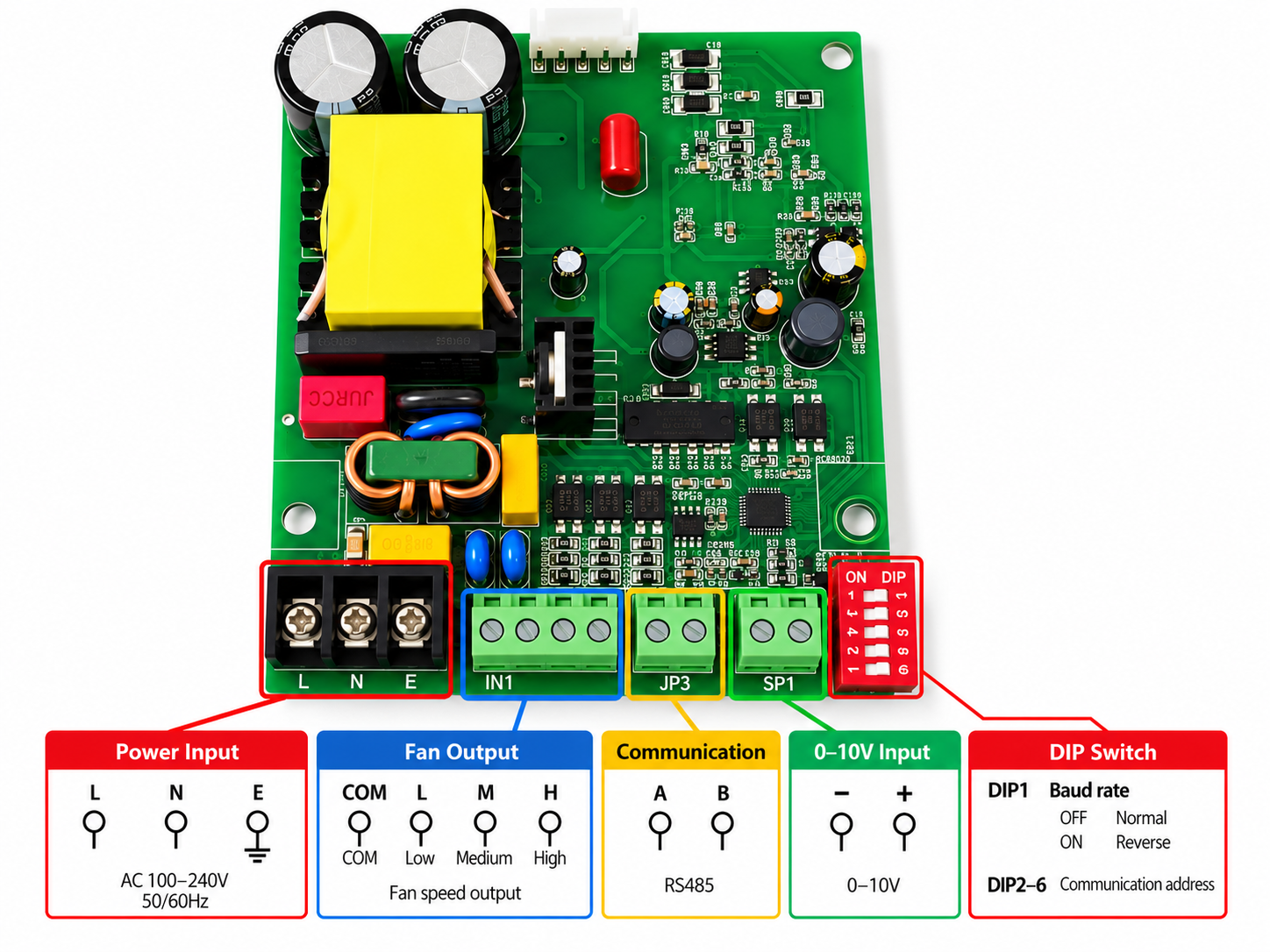

Flexible control interfaces for different HVAC motor and system requirements. Availability depends on the selected driver and application.
The M10 is an external BLDC motor speed controller designed for fan coil units (FCUs) and HVAC fan applications. It provides motor speed control for compatible BLDC/ECM fan motors.
The M10 supports a wide input voltage range of 100–270VAC, 50/60Hz, making it suitable for fan coil applications with different AC power supply requirements.
Yes, the M10 can be matched with compatible BLDC/ECM motors. Compatibility depends on the motor's rated voltage, power, electrical characteristics, and operating requirements. Please provide the motor nameplate, specifications, or technical drawing for evaluation.
The M10 supports 0–10V analog speed control, RS485 Modbus RTU, and optional low-voltage 3-speed control, allowing integration with compatible FCU thermostats and HVAC control systems.
Yes. The M10 supports RS485 Modbus RTU communication for motor speed control and monitoring. Communication settings and supported registers should be verified against the applicable M10 protocol documentation.
No. The M10 uses sensorless BLDC motor control, eliminating the need for Hall sensor feedback. Motor parameters must be properly matched for reliable startup and operation.
The M10 has 200W rated input power (approximately 0.27 HP equivalent) and a documented speed command range of 300–1500 RPM. Actual operating speed and performance depend on the matched motor and fan load.
Yes. TACICON provides OEM motor and driver matching, including speed settings, rotation direction, control interfaces, and firmware customization. We can also supply matched BLDC/ECM motors, external drivers, and blower assemblies for fan coil applications.
One driver, multiple control options. Simplify ECM motor integration and OEM replacement with flexible interfaces.
Eliminate Hall sensors and simplify HVAC fan control with 0–10V, 3-speed and RS485 interfaces.
Reduce OEM integration effort with a matched ECM motor and external driver tailored to your application.
Match ECM motor, impeller/blower and external driver to your airflow, static pressure and equipment design.
Integrate ECM motor, external driver and thermostat into a coordinated HVAC control solution for OEM applications.
LET’S BUILD A SMARTER HVAC SOLUTION TOGETHER
Send us your application requirements, motor specifications, drawings or control requirements.
